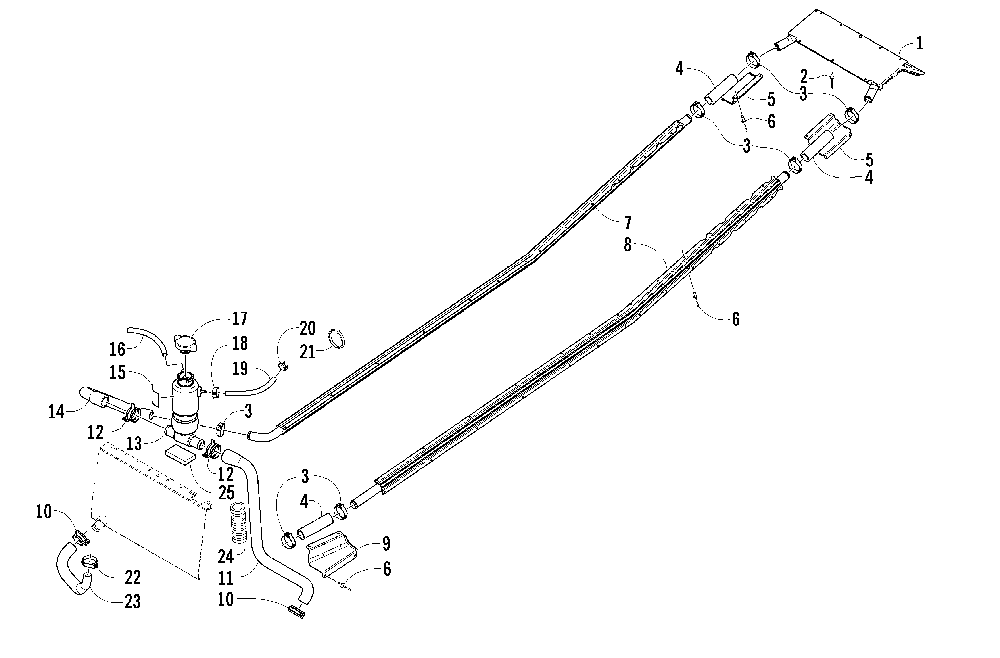

COOLING ASSEMBLY для Arctic Cat M7 EFI 153'' (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2706-656 HEAT EXCHANGER, REAR
    HEAT EXCHANGER, REAR
  • 2
    8060-686 RIVET
    RIVET
  • 3
    1623-349 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    0610-552 HOSE, COOLANT
    HOSE, COOLANT
  • 5
    3606-564 PROTECTOR, HOSE, REAR
    PROTECTOR, HOSE, REAR
  • 6
    8060-484 RIVET
    RIVET
  • 6
    8060-488 RIVET
    RIVET
  • 7
    3606-520 HEAT EXCHANGER (RIGHT)
    HEAT EXCHANGER (RIGHT)
  • 8
    3606-521 HEAT EXCHANGER (LEFT)
    HEAT EXCHANGER (LEFT)
  • 9
    3606-565 PROTECTOR, HOSE, FRONT
    PROTECTOR, HOSE, FRONT
  • 10
    1623-229 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-625 HOSE, COOLANT TANK/ENGINE
    HOSE, COOLANT TANK/ENGINE
  • 12
    1623-322 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    2706-791 TANK, COOLANT
    TANK, COOLANT
  • 14
    0610-553 HOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
    HOSE, COOLANT TANK/RIGHT HEAT EXCHANGER
  • 15
    2611-758 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 16
    0610-016 HOSE, VENT (25 FT)
    HOSE, VENT (25 FT)
  • 16
    0610-015 HOSE, VENT (100 FT)
    HOSE, VENT (100 FT)
  • 17
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 18
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0610-538 HOSE, COOLANT (25 FT)
    HOSE, COOLANT (25 FT)
  • 20
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 21
    0123-788 CABLE TIE, 7.5 IN.
    CABLE TIE, 7.5 IN.
  • 22
    1623-350 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0610-626 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
  • 24
    1619-038 PROTECTOR, HOSE, 7 IN.
    PROTECTOR, HOSE, 7 IN.
  • 25
    4606-102 PAD, SUPPORT, COOLANT BOTTLE
    PAD, SUPPORT, COOLANT BOTTLE
