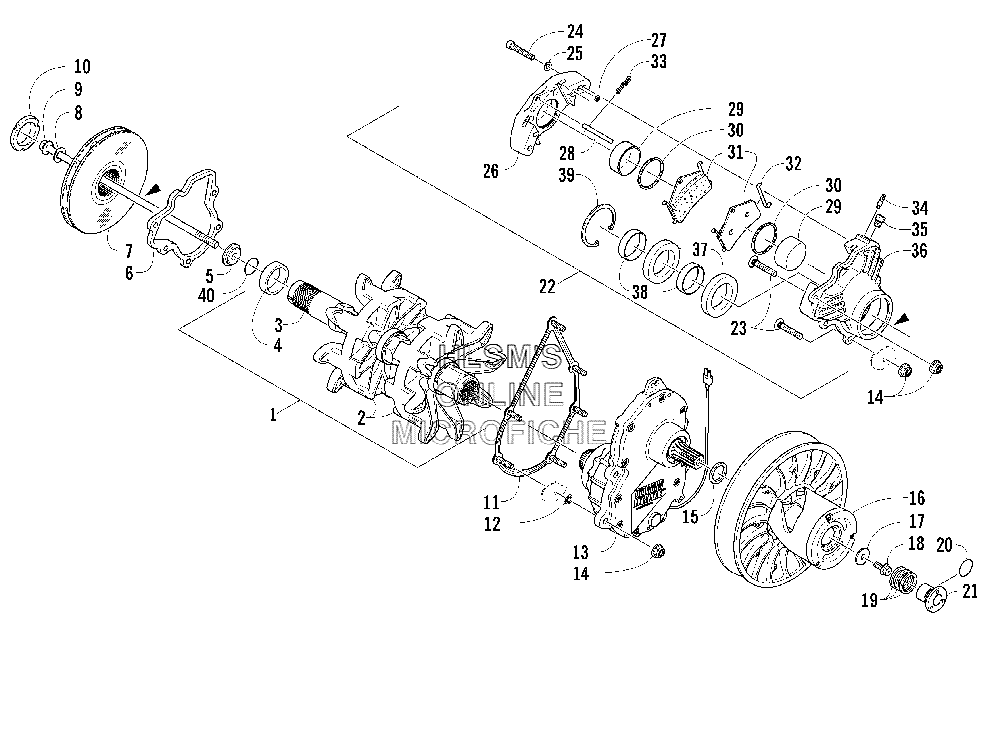

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat M7 EFI 141'' (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
10728-113 TRACK DRIVE ASSEMBLY (INC. 2, 4)TRACK DRIVE ASSEMBLY (INC. 2, 4)
-
21602-592 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-760 DRIVESHAFTDRIVESHAFT
-
41602-315 COLLARCOLLAR
-
51602-791 INSERT, DRIVESHAFTINSERT, DRIVESHAFT
-
61602-497 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
71602-656 DISC, BRAKEDISC, BRAKE
-
81623-445 WASHER, COPPERWASHER, COPPER
-
91623-376 SCREW, CAPSCREW, CAP
-
101602-355 NUT, RETAININGNUT, RETAINING
-
110702-648 PLATE, MOUNTING, GEARCASEPLATE, MOUNTING, GEARCASE
-
121623-355 NUT, PUSHNUT, PUSH
-
130702-667 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
148047-426 NUT, LOCKNUT, LOCK
-
150648-442 WASHERWASHER
-
150648-443 WASHERWASHER
-
160726-189 CLUTCH, DRIVENCLUTCH, DRIVEN
-
171623-072 WASHERWASHER
-
181623-275 SCREW, CAPSCREW, CAP
-
190648-714 WASHERWASHER
-
190648-715 WASHERWASHER
-
190648-716 WASHERWASHER
-
200648-441 O-RINGO-RING
-
210648-741 ADJUSTER, SHEAVEADJUSTER, SHEAVE
-
220702-652 CALIPER, BRAKE, ASSEMBLY (INC. 23, 39)CALIPER, BRAKE, ASSEMBLY (INC. 23, 39)
-
231623-360 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
241602-671 SCREW, CAPSCREW, CAP
-
250402-165 WASHERWASHER
-
270602-729 O-RING, HOUSINGO-RING, HOUSING
-
281602-464 PIN, RETAINING, BRAKE PADPIN, RETAINING, BRAKE PAD
-
291602-461 PISTONPISTON
-
301602-669 O-RINGO-RING
-
310702-563 PAD, BRAKE, SET (INC. 32, 33)PAD, BRAKE, SET (INC. 32, 33)
-
321602-466 CLIP, ANTI, RATTLECLIP, ANTI, RATTLE
-
331602-467 CLIP, HAIRPINCLIP, HAIRPIN
-
341602-458 FITTING, BLEEDFITTING, BLEED
-
350602-590 FITTING, ADAPTERFITTING, ADAPTER
-
371602-462 BEARINGBEARING
-
381602-463 SLEEVE, DRIVESHAFTSLEEVE, DRIVESHAFT
-
391602-456 RING, RETAININGRING, RETAINING
-
400648-441 O-RINGO-RING
