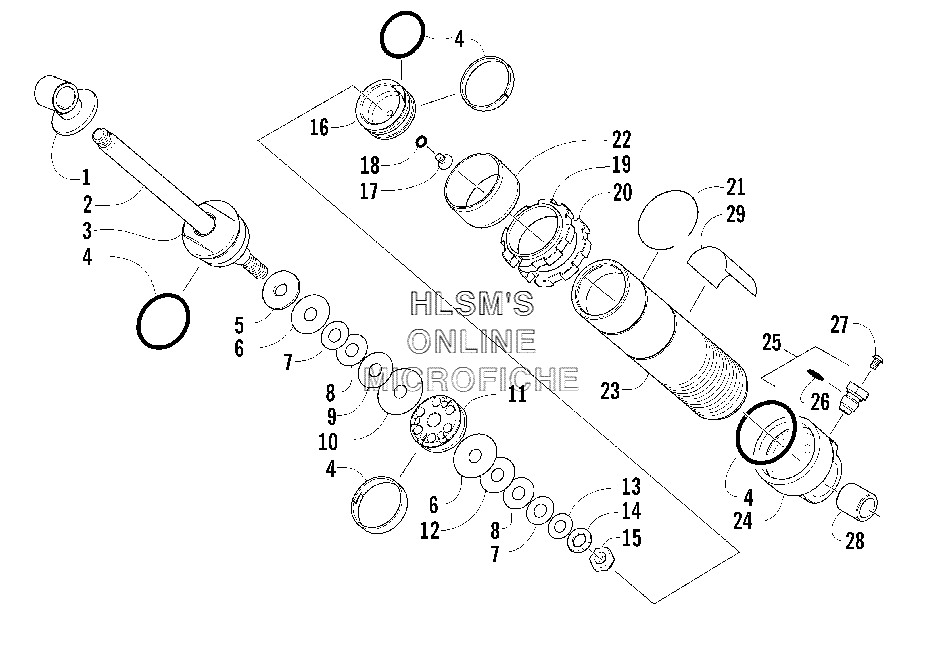

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat M6 EFI 141'' (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    1704-318 SHOCK ABSORBER ASSEMBLY
    SHOCK ABSORBER ASSEMBLY
  • 1
    0604-625 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    2604-861 ROD, SHOCK
    ROD, SHOCK
  • 3
    2604-812 CAP, SHOCK
    CAP, SHOCK
  • 4
    2604-815 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 5
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 6
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 7
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 8
    0603-881 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 9
    0603-882 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 10
    0603-891 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 11
    0603-206 PISTON, 0.059 IN., ORIFICE
    PISTON, 0.059 IN., ORIFICE
  • 12
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 13
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 14
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 15
    0603-301 NUT, LOCK
    NUT, LOCK
  • 16
    2604-816 PISTON, FLOATING, ASSEMBLY
    PISTON, FLOATING, ASSEMBLY
  • 17
    1604-316 SCREW, RELIEF (INC. 18)
    SCREW, RELIEF (INC. 18)
  • 18
    1604-425 O-RING
    O-RING
  • 19
    2604-840 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 20
    2604-841 NUT, LOCKING, ADJUSTER
    NUT, LOCKING, ADJUSTER
  • 21
    2603-245 RETAINER, WEAR SLEEVE
    RETAINER, WEAR SLEEVE
  • 22
    2603-246 SLEEVE, WEAR
    SLEEVE, WEAR
  • 23
    2604-862 BODY, SHOCK
    BODY, SHOCK
  • 24
    2604-817 END CAP, SHOCK
    END CAP, SHOCK
  • 25
    0703-341 VALVE, PRESSURE (INC. 26)
    VALVE, PRESSURE (INC. 26)
  • 26
    1604-318 O-RING, VALVE
    O-RING, VALVE
  • 27
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    2604-415 BUSHING, SHOCK
    BUSHING, SHOCK
  • 29
    2604-897 DECAL, SHOCK
    DECAL, SHOCK
  • -
    2639-149 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
