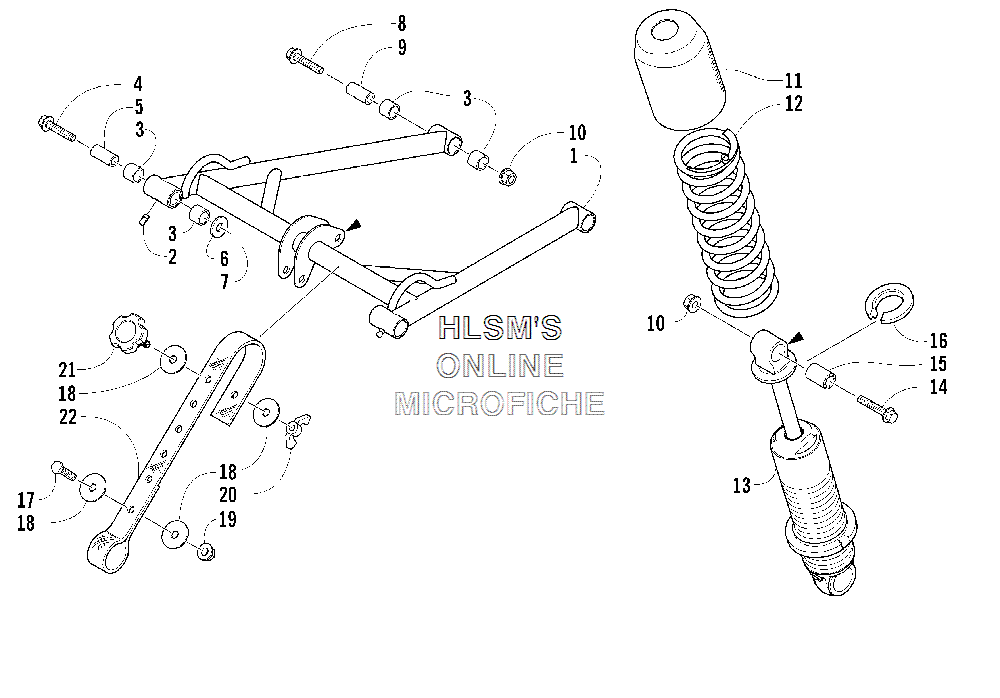

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat King Cat 900 (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
11704-053 ARM SUSPENSION (FRONT) (INC. 2, 3)ARM SUSPENSION (FRONT) (INC. 2, 3)
-
21623-010 FITTING, GREASE, SELF, TAPPINGFITTING, GREASE, SELF, TAPPING
-
30604-889 BUSHING ARM (FRONT)BUSHING ARM (FRONT)
-
48020-229 SCREW, CAPSCREW, CAP
-
51604-162 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
60114-197 WASHERWASHER
-
78047-486 NUT, LOCKNUT, LOCK
-
88020-228 SCREW, CAPSCREW, CAP
-
90104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
108048-486 NUT, LOCKNUT, LOCK
-
110604-590 COVER, SHOCKCOVER, SHOCK
-
122604-565 SPRING, COMPRESSION (TITANIUM)SPRING, COMPRESSION (TITANIUM)
-
131704-294 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
148020-226 SCREW, CAPSCREW, CAP
-
150603-030 AXLE, SERRATEDAXLE, SERRATED
-
161603-890 RETAINER, SPRINGRETAINER, SPRING
-
178002-043 SCREW, CAPSCREW, CAP
-
180623-184 WASHERWASHER
-
198047-366 NUT, LOCKNUT, LOCK
-
200623-325 NUT, WINGNUT, WING
-
211623-044 KNOB, ADJUSTERKNOB, ADJUSTER
-
222604-657 STRAP, LIMITERSTRAP, LIMITER
