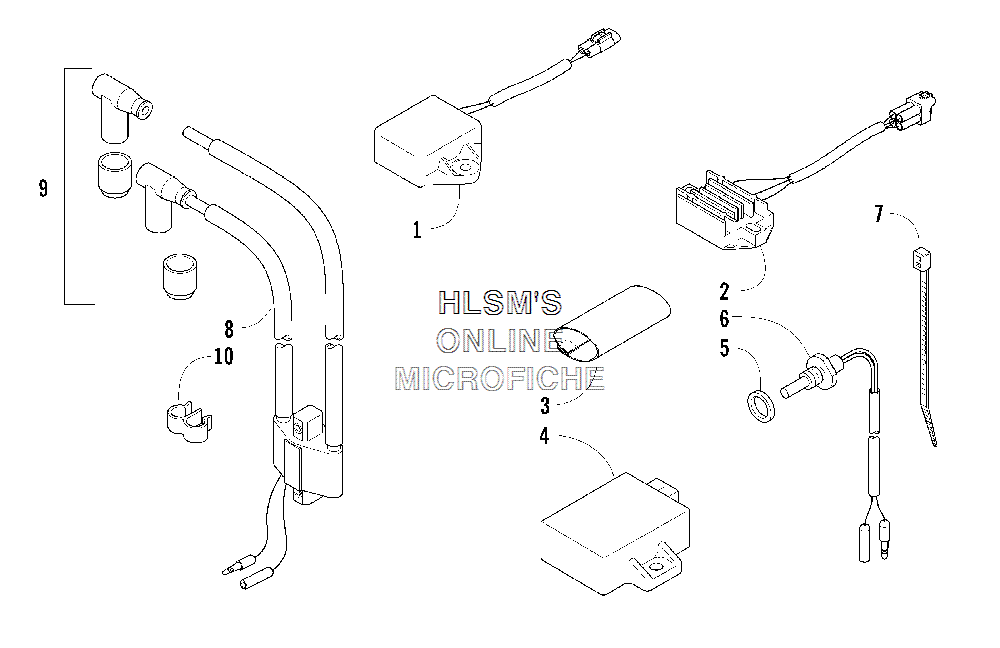

ELECTRICAL для Arctic Cat F7 Firecat SNO PRO (ORANGE) - 2005 года выпуска
-
№АртикулНазвание
-
13006-733 CONDENSER, EXHAUST VALVECONDENSER, EXHAUST VALVE
-
23006-732 REGULATOR, EXHAUST VALVEREGULATOR, EXHAUST VALVE
-
33003-474 COVER, CONNECTORCOVER, CONNECTOR
-
43006-968 CDI UNITCDI UNIT
-
53005-233 WASHER, TEMPERATURE SENSORWASHER, TEMPERATURE SENSOR
-
63006-725 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
73005-237 CABLE TIECABLE TIE
-
83006-692 COIL, IGNITIONCOIL, IGNITION
-
93006-367 CAP, SPARK PLUGCAP, SPARK PLUG
-
103005-387 CLAMPCLAMP
