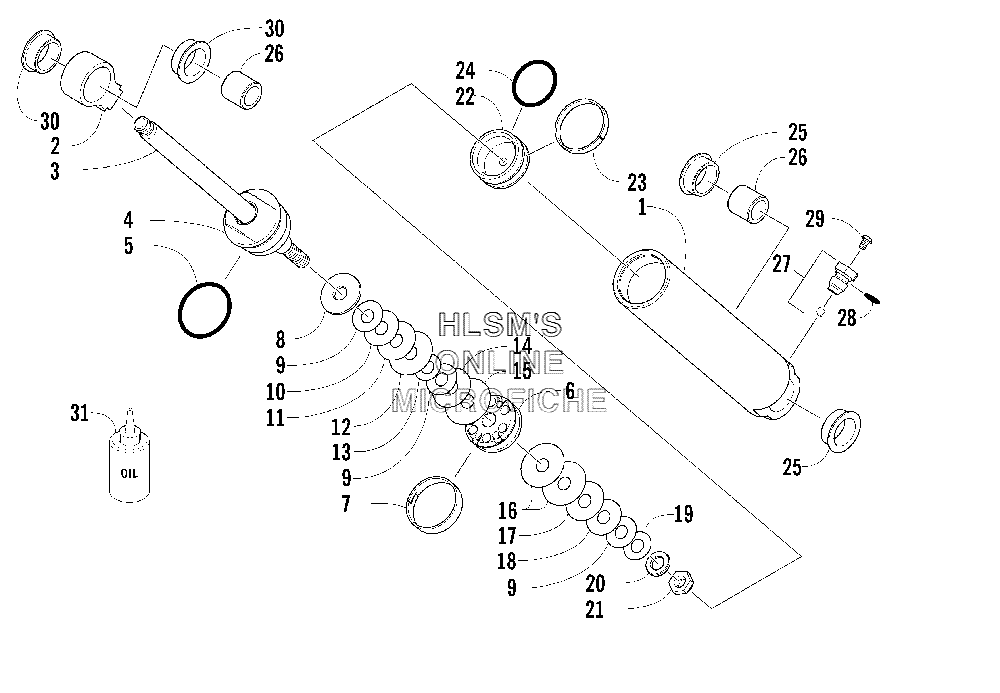

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F7 Firecat (RED) - 2005 года выпуска`
-
№АртикулНазвание
-
-1704-117 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-598 BODY, SHOCKBODY, SHOCK
-
21603-503 EYELET, SHOCKEYELET, SHOCK
-
32604-599 ROD, SHOCKROD, SHOCK
-
41703-452 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
61603-314 PISTON, 0.039 IN., ORIFICEPISTON, 0.039 IN., ORIFICE
-
71604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
81604-272 WASHER, TOP OUTWASHER, TOP OUT
-
92603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
102603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
112603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
122603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
132603-040 VALVE, 0.700 X 0.004 IN.VALVE, 0.700 X 0.004 IN.
-
142603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
152603-135 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
162603-126 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
172603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
182603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
192603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
201604-273 WASHER, BACKUPWASHER, BACKUP
-
210623-696 NUT, LOCKNUT, LOCK
-
220704-791 PISTON, FLOATING (INC. 23, 24)PISTON, FLOATING (INC. 23, 24)
-
232604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
242604-152 O-RINGO-RING
-
252604-164 BUSHING, SHOCKBUSHING, SHOCK
-
261604-397 SLEEVE, EYELETSLEEVE, EYELET
-
270704-796 VALVE, PRESSURE (INC. 28)VALVE, PRESSURE (INC. 28)
-
282604-162 O-RINGO-RING
-
290624-546 SCREW, VALVESCREW, VALVE
-
301604-262 BUSHING, SHOCKBUSHING, SHOCK
-
311639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
