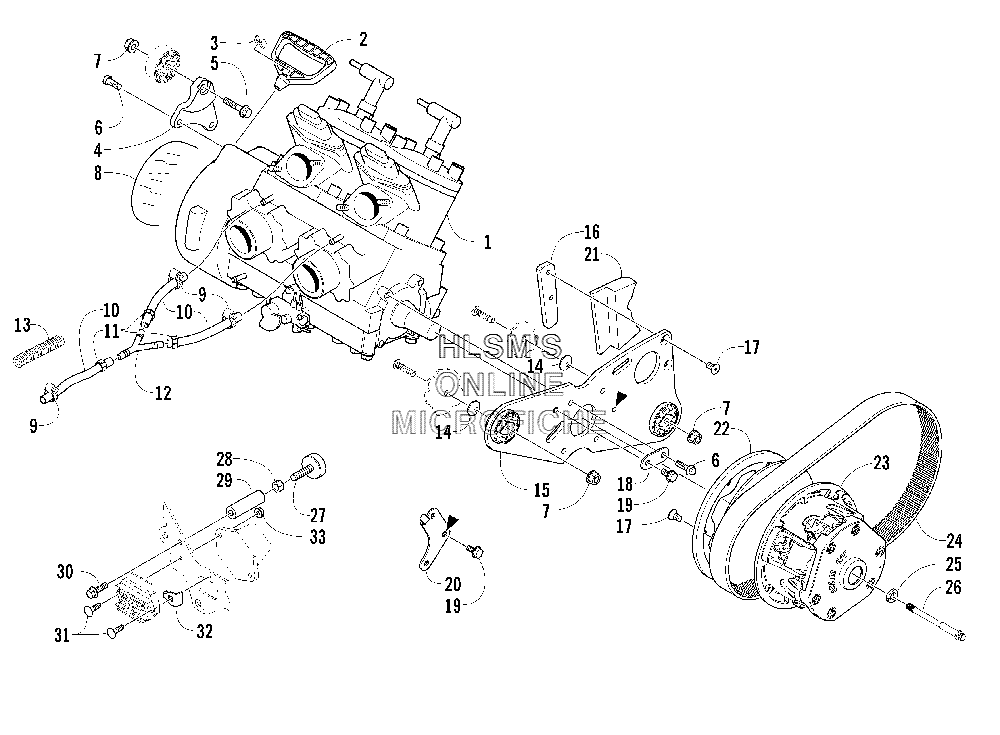

ENGINE AND RELATED PARTS для Arctic Cat F7 Firecat (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
10662-387 ENGINE, AE70L3ENGINE, AE70L3
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40608-388 BRACKET, ENGINE MOUNTING (RIGHT)BRACKET, ENGINE MOUNTING (RIGHT)
-
58020-136 SCREW, CAPSCREW, CAP
-
68408-820 SCREW, CAPSCREW, CAP
-
78047-426 NUT, LOCKNUT, LOCK
-
81670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
90623-373 CLAMP, HOSECLAMP, HOSE
-
100610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
110610-581 CLAMP, HOSECLAMP, HOSE
-
121670-596 Y, FITTINGY, FITTING
-
130619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
140623-987 WASHERWASHER
-
150708-430 BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND TWO NO. 17)BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND TWO NO. 17)
-
160608-430 SPACER, TORQUE BUMPERSPACER, TORQUE BUMPER
-
171623-128 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180608-407 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
190623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
200608-397 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
210608-431 BUMPER, TORQUEBUMPER, TORQUE
-
220645-410 DAMPER, CLUTCHDAMPER, CLUTCH
-
230725-441 CLUTCH, DRIVECLUTCH, DRIVE
-
240627-034 BELT, DRIVEBELT, DRIVE
-
250623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
260623-804 BOLT, CLUTCHBOLT, CLUTCH
-
270608-396 BUMPER, TORQUEBUMPER, TORQUE
-
288042-486 NUTNUT
-
290608-394 TUBE, TORQUE BUMPERTUBE, TORQUE BUMPER
-
308020-220 SCREW, CAPSCREW, CAP
-
318011-044 BOLT, CARRIAGEBOLT, CARRIAGE
-
323606-276 BRACKET, MOUNTING, REGULATORBRACKET, MOUNTING, REGULATOR
-
338048-366 NUT, LOCKNUT, LOCK
