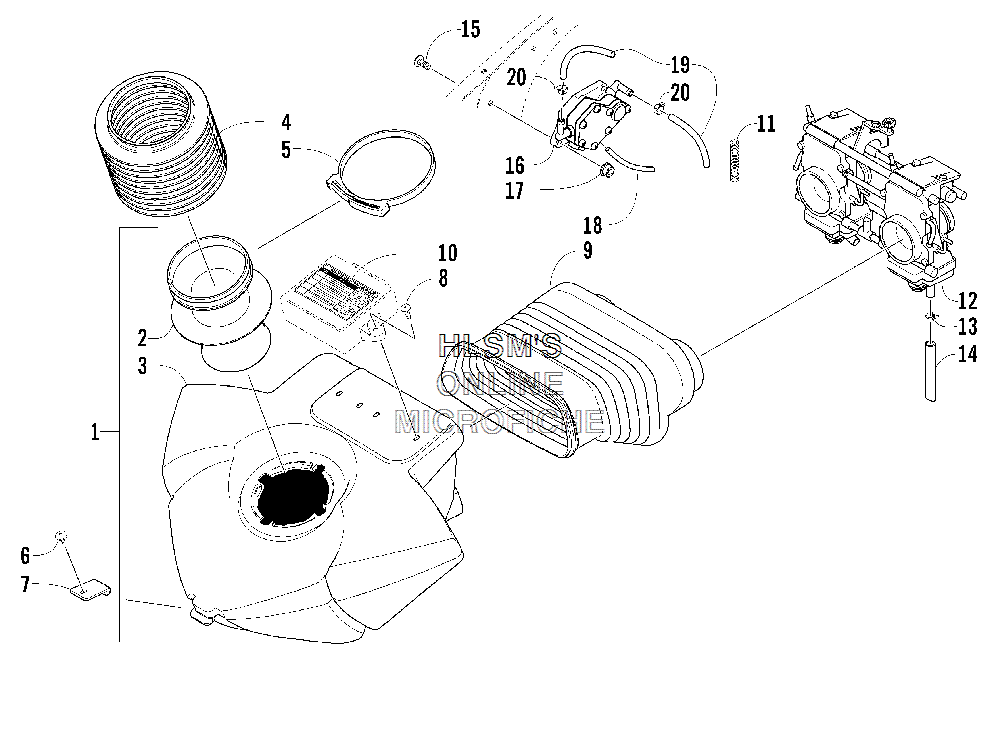

AIR SILENCER ASSEMBLY для Arctic Cat F7 Firecat EFI SNO PRO (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
10770-611 SILENCER, AIR, ASSEMBLY (INC. 2, 3)SILENCER, AIR, ASSEMBLY (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-616 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-583 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
105611-851 DECAL, CDIDECAL, CDI
-
110716-558 CONDUIT, FLEXIBLE (10 FT)CONDUIT, FLEXIBLE (10 FT)
-
121670-555 CARBURETOR, TM40, B280CARBURETOR, TM40, B280
-
130623-652 CLAMP, HOSECLAMP, HOSE
-
140610-442 HOSE, DRAINHOSE, DRAIN
-
158017-582 SCREW, MACHINESCREW, MACHINE
-
161670-416 PUMP, FUELPUMP, FUEL
-
178048-366 NUT, LOCKNUT, LOCK
-
180610-007 HOSE, IMPULSEHOSE, IMPULSE
-
190610-015 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
190610-016 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
200124-045 CLAMP, HOSECLAMP, HOSE
