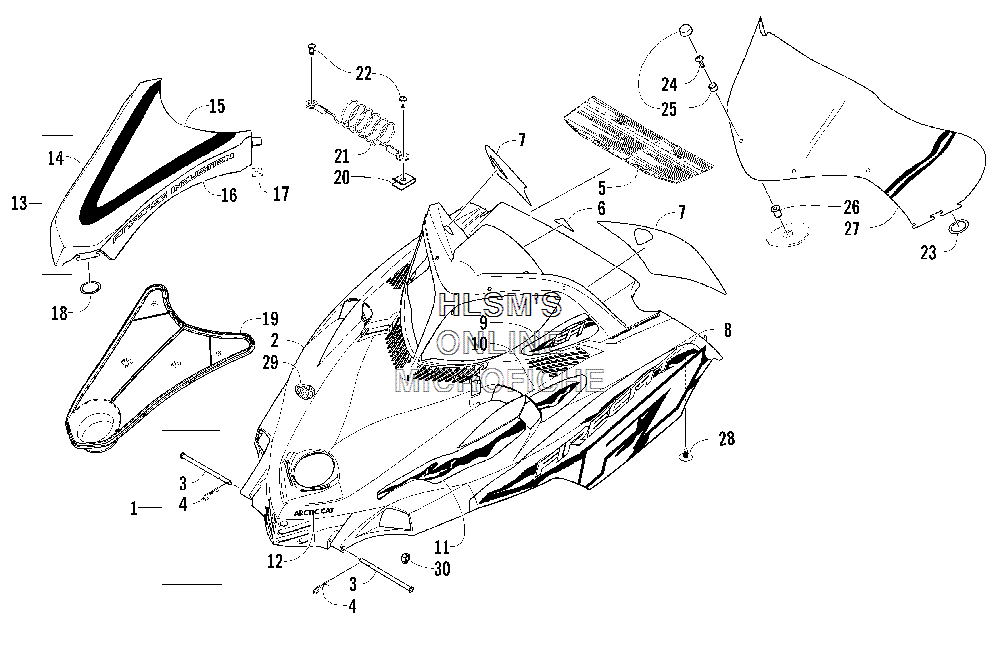

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat F7 Firecat EFI EXT (RED) - 2005 года выпуска
‹-+›
-
№АртикулНазвание
-
11718-653 HOOD W/DECALS (INC. 2, 12)HOOD W/DECALS (INC. 2, 12)
-
21718-637 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
31623-026 PIN, CLEVISPIN, CLEVIS
-
40623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
54611-496 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
63611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
75611-998 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
75611-999 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
85611-988 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
85611-989 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
95611-990 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
95611-991 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
105611-994 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
105611-995 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
115611-996 DECAL, HOOD, VENT (LOWER/RIGHT)DECAL, HOOD, VENT (LOWER/RIGHT)
-
115611-997 DECAL, HOOD, VENT (LOWER/LEFT)DECAL, HOOD, VENT (LOWER/LEFT)
-
123611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
131718-656 COVER, HOOD (INC. 14, 17)COVER, HOOD (INC. 14, 17)
-
142706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
156611-001 DECAL, COVER (CENTER)DECAL, COVER (CENTER)
-
165611-980 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
165611-981 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
172606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
182606-801 O-RINGO-RING
-
193606-150 SCREEN, HOODSCREEN, HOOD
-
201623-052 U, NUTU, NUT
-
212606-726 CABLE, HOODCABLE, HOOD
-
220623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230616-032 O-RINGO-RING
-
240623-902 SCREW, MACHINESCREW, MACHINE
-
250124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
260623-845 NUT, EXPANSIONNUT, EXPANSION
-
273606-460 WINDSHIELDWINDSHIELD
-
280623-544 PLUGPLUG
-
290617-466 FOAM, HOODFOAM, HOOD
-
300123-394 CLIP, RETAININGCLIP, RETAINING
