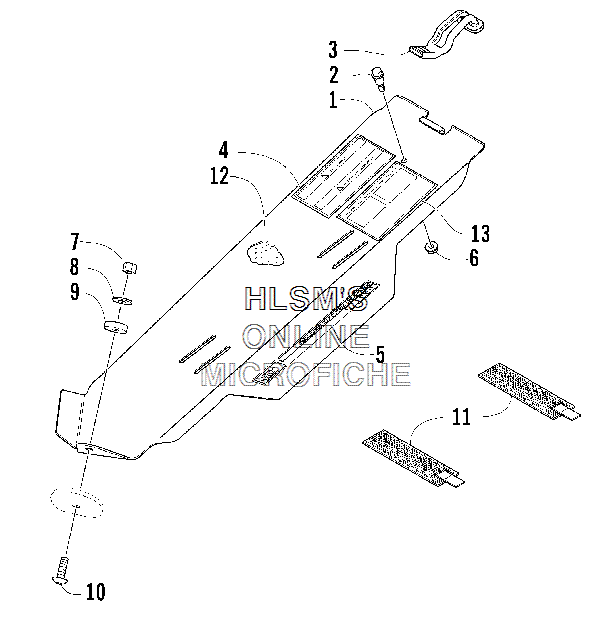

BELT GUARD ASSEMBLY для Arctic Cat F7 Firecat EFI EXT (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0607-757 GUARD, BELT
    GUARD, BELT
  • 2
    0623-855 SCREW, SHOULDER
    SCREW, SHOULDER
  • 3
    0607-659 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 4
    1611-565 DECAL, WARNING, BELT GUARD
    DECAL, WARNING, BELT GUARD
  • 5
    3611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"
    DECAL, "ACT, ROLLER DRIVEN CLUTCH"
  • 6
    8048-366 NUT, LOCK
    NUT, LOCK
  • 7
    8040-426 NUT, LOCK
    NUT, LOCK
  • 8
    8050-252 WASHER
    WASHER
  • 9
    1623-046 WASHER, RUBBER
    WASHER, RUBBER
  • 10
    8017-672 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    0707-582 RETAINER, DRIVE BELT
    RETAINER, DRIVE BELT
  • 12
    0617-450 FOAM, BELT GUARD
    FOAM, BELT GUARD
  • 13
    5611-862 DECAL, SPRING ADJUSTMENT
    DECAL, SPRING ADJUSTMENT
