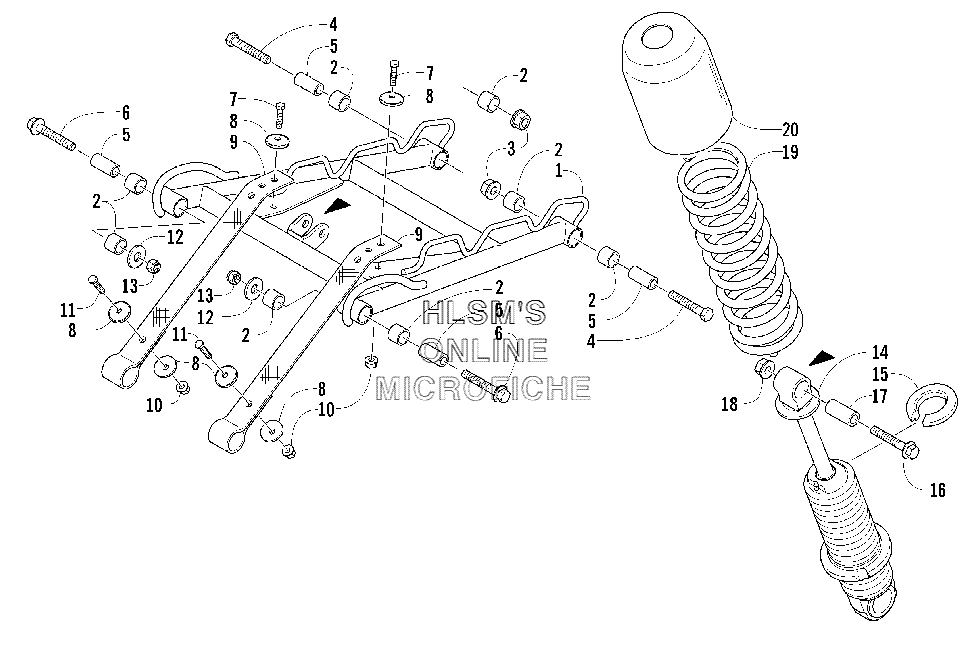

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat F7 Firecat (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
11704-312 ARM SUSPENSION (FRONT) (INC. 2)ARM SUSPENSION (FRONT) (INC. 2)
-
20604-889 BUSHINGBUSHING
-
38047-490 NUT, LOCKNUT, LOCK
-
48002-228 SCREW, CAPSCREW, CAP
-
50104-629 SPACER ARM (FRONT)SPACER ARM (FRONT)
-
68020-228 SCREW, CAPSCREW, CAP
-
78002-041 SCREW, CAPSCREW, CAP
-
80623-875 WASHERWASHER
-
92604-834 STRAP, LIMITERSTRAP, LIMITER
-
108047-366 NUT, LOCKNUT, LOCK
-
118002-045 SCREW, CAPSCREW, CAP
-
120623-044 WASHERWASHER
-
138040-486 NUT, LOCKNUT, LOCK
-
141704-116 SHOCK ABSORBER ARM (FRONT)SHOCK ABSORBER ARM (FRONT)
-
151603-890 RETAINER, SPRINGRETAINER, SPRING
-
168020-227 SCREW, CAPSCREW, CAP
-
171603-531 AXLE, SHOCKAXLE, SHOCK
-
188048-486 NUT, LOCKNUT, LOCK
-
190704-523 SPRING, COMPRESSIONSPRING, COMPRESSION
-
200604-790 COVER, SHOCKCOVER, SHOCK
