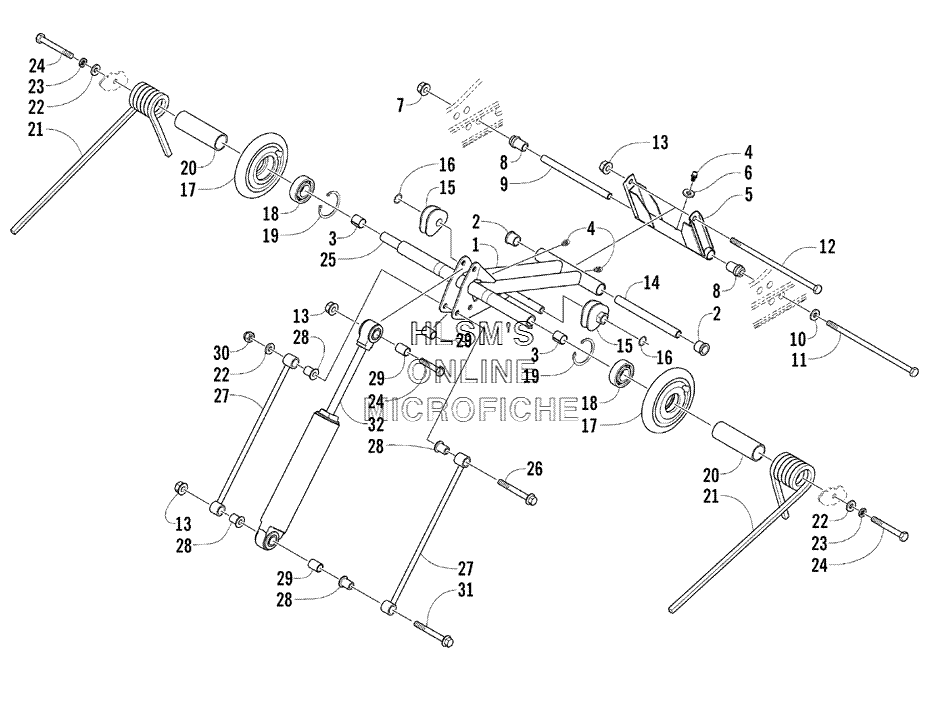

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat F6 Firecat EFI SNO PRO (RED) INTERNATIONAL - 2005 года выпуска`
-
№АртикулНазвание
-
11704-005 ARM, IDLER (INC. 2, 3 AND TWO NO. 4)ARM, IDLER (INC. 2, 3 AND TWO NO. 4)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
32604-147 BEARINGBEARING
-
41623-010 FITTING, GREASEFITTING, GREASE
-
51704-019 ARM (REAR) (INC. ONE NO. 4 AND 6)ARM (REAR) (INC. ONE NO. 4 AND 6)
-
61623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
78047-490 NUT, LOCKNUT, LOCK
-
82604-664 BUSHING ARM (REAR)BUSHING ARM (REAR)
-
92604-663 TUBE, AXLETUBE, AXLE
-
108050-272 WASHERWASHER
-
111623-037 SCREW, CAPSCREW, CAP
-
121623-086 SCREW, CAPSCREW, CAP
-
138048-486 NUT, LOCKNUT, LOCK
-
142604-370 AXLE, STEELAXLE, STEEL
-
151604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
151604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
160623-138 RING, RETAININGRING, RETAINING
-
172604-143 WHEEL, IDLER (INC. 18, 19)WHEEL, IDLER (INC. 18, 19)
-
180107-598 BEARINGBEARING
-
190123-798 RING, RETAININGRING, RETAINING
-
202604-379 SLEEVE, SPRINGSLEEVE, SPRING
-
210704-934 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
210704-935 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
220623-044 WASHERWASHER
-
238051-277 WASHER, LOCKWASHER, LOCK
-
248002-226 SCREW, CAPSCREW, CAP
-
252604-139 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
261623-219 SCREW, CAPSCREW, CAP
-
270704-361 LINK REAR SHOCKLINK REAR SHOCK
-
282604-531 AXLE, LINKAXLE, LINK
-
291604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
308041-486 NUT, LOCKNUT, LOCK
-
318020-234 SCREW, CAPSCREW, CAP
-
321704-362 SHOCK ABSORBER ARM (REAR)SHOCK ABSORBER ARM (REAR)
