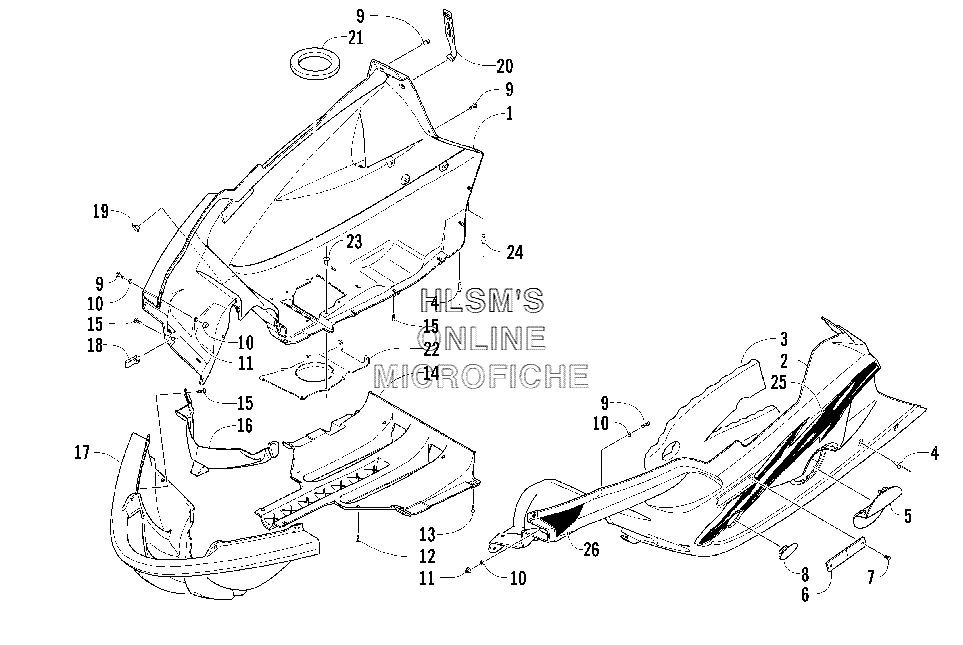

BELLY PAN ASSEMBLY для Arctic Cat F6 Firecat EFI EXT (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-646 BELLY PAN (RIGHT)
    BELLY PAN (RIGHT)
  • 2
    3606-913 BELLY PAN (LEFT)
    BELLY PAN (LEFT)
  • 3
    0617-462 FOAM, BELLY PAN
    FOAM, BELLY PAN
  • 4
    8061-708 RIVET
    RIVET
  • 5
    3606-912 PANEL, ACCESS, DRIVEN CLUTCH
    PANEL, ACCESS, DRIVEN CLUTCH
  • 6
    0606-526 REFLECTOR (FRONT) (AMBER)
    REFLECTOR (FRONT) (AMBER)
  • 7
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 8
    2606-650 PANEL, ACCESS, DRIVE CLUTCH
    PANEL, ACCESS, DRIVE CLUTCH
  • 9
    8017-581 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    8050-217 WASHER
    WASHER
  • 11
    8040-366 NUT, LOCK
    NUT, LOCK
  • 12
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    1623-031 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 14
    3606-085 BELLY PAN, CENTER
    BELLY PAN, CENTER
  • 15
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 16
    2606-911 SCREEN, BELLY PAN, CENTER
    SCREEN, BELLY PAN, CENTER
  • 17
    3606-086 BUMPER (FRONT)
    BUMPER (FRONT)
  • 18
    1623-030 NUT, SPEED
    NUT, SPEED
  • 19
    3606-050 PIN, RESONATOR MOUNTING
    PIN, RESONATOR MOUNTING
  • 20
    2606-624 STRAP, HOLD, DOWN
    STRAP, HOLD, DOWN
  • 21
    1612-603 SEAL, EXHAUST
    SEAL, EXHAUST
  • 22
    1612-686 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 23
    8061-508 RIVET
    RIVET
  • 24
    8061-710 RIVET
    RIVET
  • 25
    6611-002 DECAL, BELLY PAN (RIGHT)
    DECAL, BELLY PAN (RIGHT)
  • 25
    6611-003 DECAL, BELLY PAN (LEFT)
    DECAL, BELLY PAN (LEFT)
