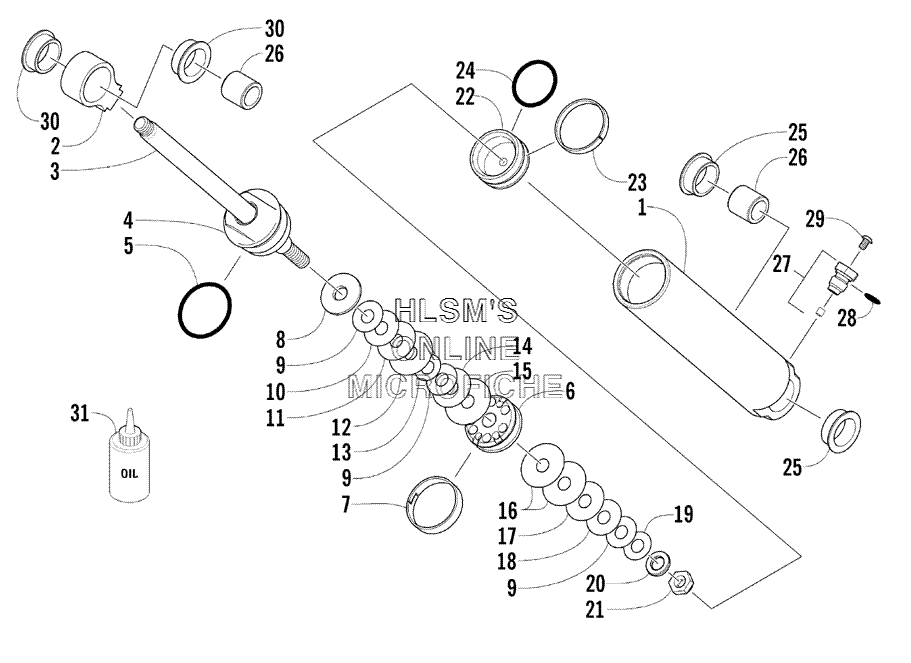

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F5 Firecat (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    1704-117 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    2604-598 BODY, SHOCK
    BODY, SHOCK
  • 2
    1603-503 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    2604-599 ROD, SHOCK
    ROD, SHOCK
  • 4
    1703-452 CAP, SHOCK (INC. 5)
    CAP, SHOCK (INC. 5)
  • 5
    1604-271 O-RING
    O-RING
  • 6
    1603-314 PISTON, 0.039 IN., ORIFICE
    PISTON, 0.039 IN., ORIFICE
  • 7
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 8
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 9
    2603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 10
    2603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 11
    2603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 12
    2603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 13
    2603-040 VALVE, 0.700 X 0.004 IN.
    VALVE, 0.700 X 0.004 IN.
  • 14
    2603-094 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 15
    2603-135 VALVE, 1.300 X 0.010 IN.
    VALVE, 1.300 X 0.010 IN.
  • 16
    2603-126 VALVE, 1.250 X 0.012 IN.
    VALVE, 1.250 X 0.012 IN.
  • 17
    2603-096 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 18
    2603-076 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 19
    2603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 20
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 21
    0623-696 NUT, LOCK
    NUT, LOCK
  • 22
    0704-791 PISTON, FLOATING (INC. 23, 24)
    PISTON, FLOATING (INC. 23, 24)
  • 23
    2604-153 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 24
    2604-152 O-RING
    O-RING
  • 25
    2604-164 BUSHING, SHOCK
    BUSHING, SHOCK
  • 26
    1604-397 SLEEVE, EYELET
    SLEEVE, EYELET
  • 27
    0704-796 VALVE, PRESSURE (INC. 28)
    VALVE, PRESSURE (INC. 28)
  • 28
    2604-162 O-RING
    O-RING
  • 29
    0624-546 SCREW, VALVE
    SCREW, VALVE
  • 30
    1604-262 BUSHING, SHOCK
    BUSHING, SHOCK
  • 31
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
