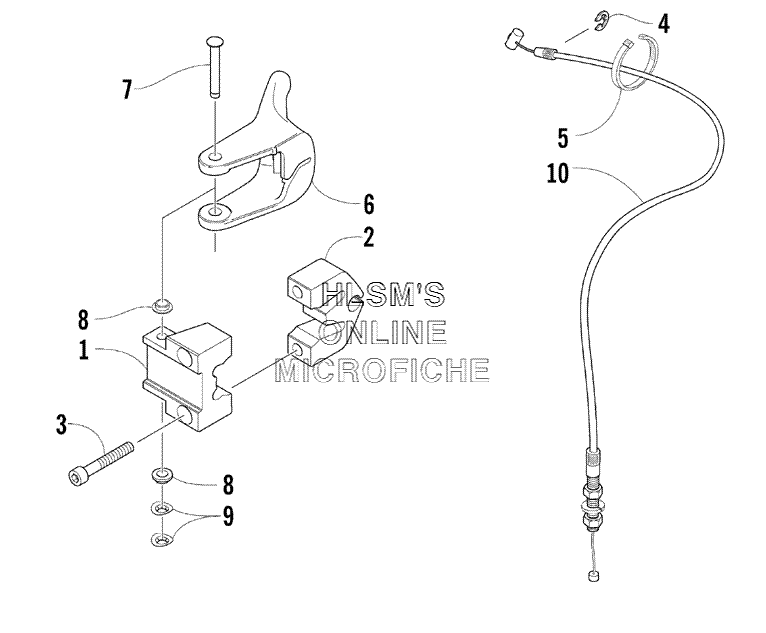

CONTROL ASSEMBLY для Arctic Cat AC 440 SNO PRO (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
10605-383 BLOCK, MOUNTING, THROTTLE LEVER (FRONT)BLOCK, MOUNTING, THROTTLE LEVER (FRONT)
-
20605-384 BLOCK, MOUNTING, THROTTLE LEVER (REAR)BLOCK, MOUNTING, THROTTLE LEVER (REAR)
-
38005-494 SCREW, CAPSCREW, CAP
-
40123-231 RING, RETAININGRING, RETAINING
-
50123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
60609-481 LEVER, THROTTLELEVER, THROTTLE
-
70609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
80609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
90623-773 NUT, PUSHNUT, PUSH
-
100687-190 CABLE, THROTTLECABLE, THROTTLE
