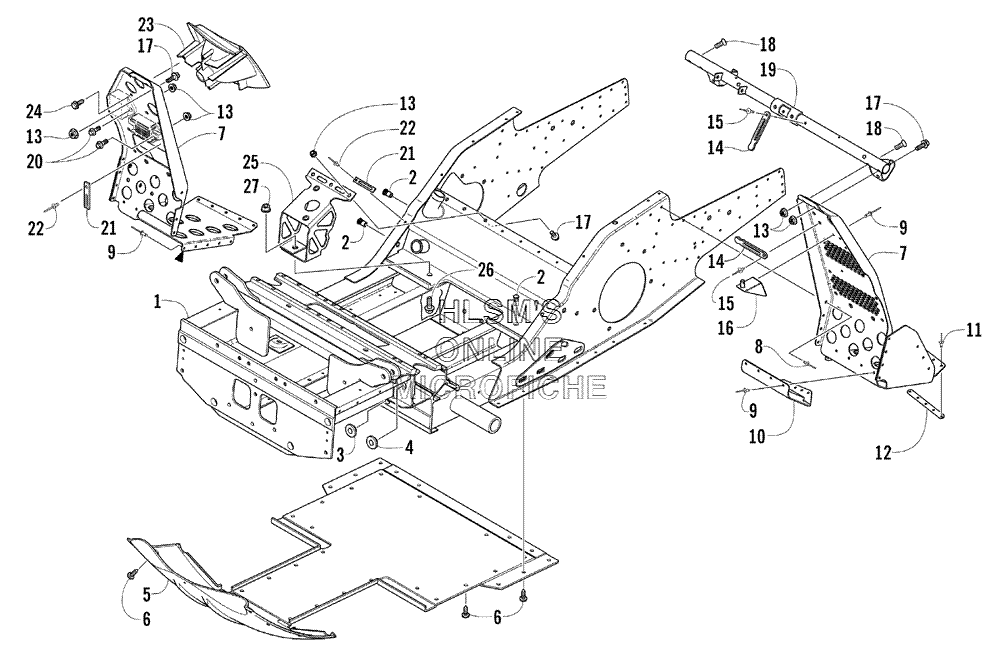

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat ZR 900 Sno Pro (Black-Red) - 2004 года выпуска
-
№АртикулНазвание
-
10707-923 CHASSIS ASSY. (INC. 2, 4)CHASSIS ASSY. (INC. 2, 4)
-
20623-582 INSERTINSERT
-
30607-420 INSERT, A, ARM MOUNTINSERT, A, ARM MOUNT
-
40607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
51606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
60623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
71706-884 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
72706-113 FOOTREST (LEFT)FOOTREST (LEFT)
-
80623-341 RIVETRIVET
-
90623-166 RIVETRIVET
-
101706-886 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
101706-887 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
110623-282 RIVETRIVET
-
122706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
138048-366 NUT, LOCKNUT, LOCK
-
143606-173 STRAP, HOLD, DOWN, AIR SILENCERSTRAP, HOLD, DOWN, AIR SILENCER
-
158061-628 RIVETRIVET
-
160705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
178020-039 SCREW, CAPSCREW, CAP
-
188019-614 SCREW, MACHINESCREW, MACHINE
-
190705-940 SUPPORT, STEERINGSUPPORT, STEERING
-
208020-041 SCREW, CAPSCREW, CAP
-
213002-964 CLAMP, WIRECLAMP, WIRE
-
228060-506 RIVETRIVET
-
231606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
240623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
250708-398 BRACKET, MOUNTING, ENGINEBRACKET, MOUNTING, ENGINE
-
268020-130 SCREW, CAPSCREW, CAP
-
278048-426 NUT, LOCKNUT, LOCK
