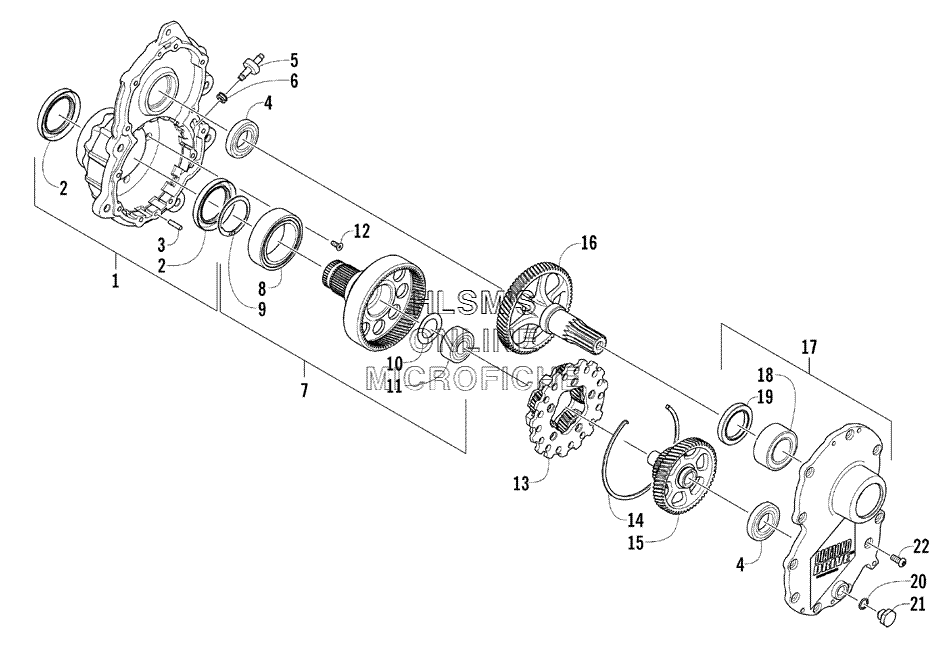

GEARCASE ASSY. для Arctic Cat ZR 900 (Black-Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • -
    0702-533 COMPLETE GEARCASE ASSY.
    COMPLETE GEARCASE ASSY.
  • 1
    0702-569 GEARCASE (INC. 2, 3 AND ONE NO. 4)
    GEARCASE (INC. 2, 3 AND ONE NO. 4)
  • 2
    1602-344 SEAL, OIL
    SEAL, OIL
  • 3
    1602-345 PIN, DOWEL
    PIN, DOWEL
  • 4
    1602-340 BEARING
    BEARING
  • 5
    0610-059 VALVE, CHECK
    VALVE, CHECK
  • 6
    1602-346 GROMMET, CHECK VALVE
    GROMMET, CHECK VALVE
  • 7
    0702-480 GEAR, RING (76 TEETH) (INC. 8, 11)
    GEAR, RING (76 TEETH) (INC. 8, 11)
  • 8
    1602-318 BEARING
    BEARING
  • 9
    1602-557 RING, SNAP
    RING, SNAP
  • 10
    1602-610 WASHER, THRUST
    WASHER, THRUST
  • 11
    1602-348 BEARING
    BEARING
  • 12
    0623-569 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    1602-349 GEAR, PLANETARY, 5 PINION
    GEAR, PLANETARY, 5 PINION
  • 14
    1602-350 RING, RETAINING, PLANETARY GEAR
    RING, RETAINING, PLANETARY GEAR
  • 15
    1602-514 GEAR, TRANSFER (54/34 TEETH)
    GEAR, TRANSFER (54/34 TEETH)
  • 16
    1602-513 SHAFT, INPUT (66 TEETH)
    SHAFT, INPUT (66 TEETH)
  • 17
    0702-571 COVER, GEARCASE (INC. ONE NO. 4 AND 18, 19)
    COVER, GEARCASE (INC. ONE NO. 4 AND 18, 19)
  • 18
    1602-341 BEARING
    BEARING
  • 19
    1602-342 SEAL, OIL
    SEAL, OIL
  • 20
    1602-213 O-RING
    O-RING
  • 21
    0623-251 PLUG, GEARCASE COVER, MAGNETIC
    PLUG, GEARCASE COVER, MAGNETIC
  • 22
    1623-075 SCREW, MACHINE
    SCREW, MACHINE
