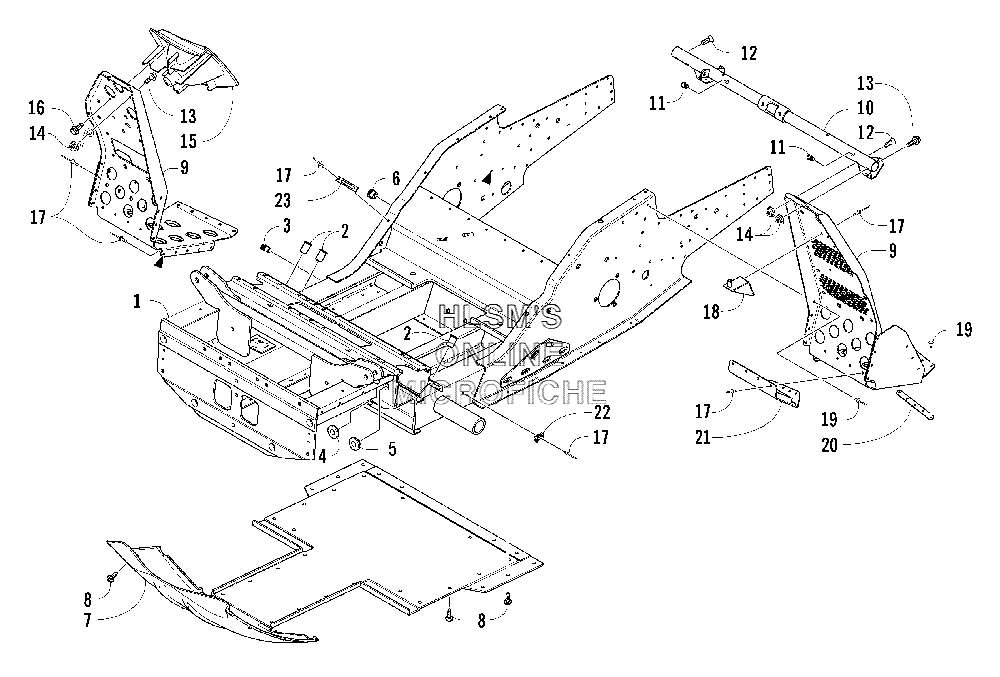

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat Z 370 (Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-709 CHASSIS ASSY. (INC. 2, 6)
    CHASSIS ASSY. (INC. 2, 6)
  • 2
    0623-699 INSERT
    INSERT
  • 3
    0623-582 INSERT
    INSERT
  • 4
    0607-420 INSERT A, ARM MOUNT (LOWER)
    INSERT A, ARM MOUNT (LOWER)
  • 5
    0607-421 INSERT A, ARM MOUNT (UPPER)
    INSERT A, ARM MOUNT (UPPER)
  • 6
    0623-581 INSERT
    INSERT
  • 7
    1606-719 BELLY PAN (CENTER)
    BELLY PAN (CENTER)
  • 8
    1623-129 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    2606-444 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 9
    2606-733 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 10
    0705-866 SUPPORT, STEERING (INC. 11)
    SUPPORT, STEERING (INC. 11)
  • 11
    0623-779 INSERT
    INSERT
  • 12
    8019-614 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    8020-040 SCREW, CAP
    SCREW, CAP
  • 14
    8048-366 NUT, LOCK
    NUT, LOCK
  • 15
    1606-062 CUP, RECOIL ROPE
    CUP, RECOIL ROPE
  • 16
    0623-297 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 17
    8060-486 RIVET
    RIVET
  • 18
    0705-173 BRACKET, MOUNTING, GUARD
    BRACKET, MOUNTING, GUARD
  • 19
    8060-706 RIVET
    RIVET
  • 20
    2706-110 PLATE, BACKING, FOOTREST
    PLATE, BACKING, FOOTREST
  • 21
    2606-458 PLATE, BACKING (RIGHT)
    PLATE, BACKING (RIGHT)
  • 21
    2606-459 PLATE, BACKING (LEFT)
    PLATE, BACKING (LEFT)
  • 22
    0623-228 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 23
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
