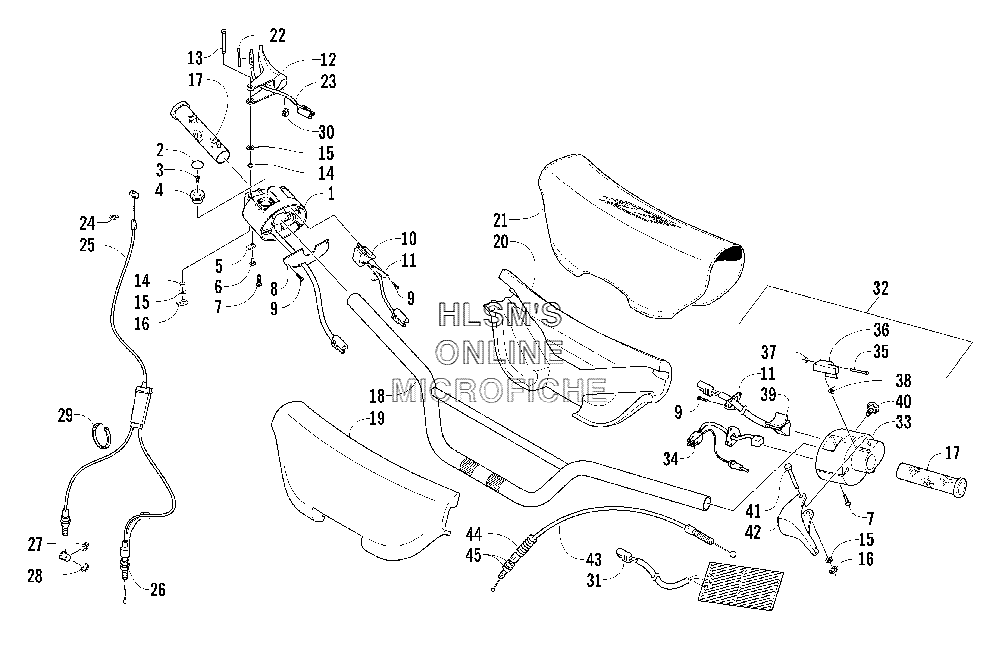

HANDLEBAR AND CONTROLS для Arctic Cat Z 370 LX (Green) - 2004 года выпуска`
-
№АртикулНазвание
-
10609-387 CONTROL, THROTTLE (INC. 2, 6, ONE NO. 7, 8, EIGHT NO. 9, 10, AND ONE NO. 11)CONTROL, THROTTLE (INC. 2, 6, ONE NO. 7, 8, EIGHT NO. 9, 10, AND ONE NO. 11)
-
20609-283 DECAL, MARK PLATEDECAL, MARK PLATE
-
30623-215 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
40609-282 KNOB, EMERGENCY STOPKNOB, EMERGENCY STOP
-
50609-319 CLAMP, HARNESS, SINGLECLAMP, HARNESS, SINGLE
-
60609-321 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70609-085 SCREW, MACHINESCREW, MACHINE
-
80609-316 COVER, THROTTLE SWITCHCOVER, THROTTLE SWITCH
-
90609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
100609-384 CONTROL, THUMBWARMER (INC. ONE NO. 11 AND THREE NO. 9)CONTROL, THUMBWARMER (INC. ONE NO. 11 AND THREE NO. 9)
-
110609-378 PLATE, COVERPLATE, COVER
-
120609-257 LEVER, THROTTLELEVER, THROTTLE
-
130609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
140609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
150609-036 WASHERWASHER
-
160609-040 RING, RETAININGRING, RETAINING
-
172606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
180705-360 HANDLEBARHANDLEBAR
-
190605-354 PAD, HANDLEBAR (FRONT)PAD, HANDLEBAR (FRONT)
-
200605-353 PAD, HANDLEBAR (REAR)PAD, HANDLEBAR (REAR)
-
210605-683 WRAP, HANDLEBAR PADWRAP, HANDLEBAR PAD
-
220617-248 PAD, INSULATORPAD, INSULATOR
-
230609-372 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240123-231 RING, RETAININGRING, RETAINING
-
250687-084 CABLE, THROTTLE (INC. 26)CABLE, THROTTLE (INC. 26)
-
260623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
270124-057 E, RINGE, RING
-
280124-056 WASHERWASHER
-
290123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
300623-262 CLIP, WIRECLIP, WIRE
-
310609-374 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
320609-393 SWITCH, BRAKE, ASSY. (INC. ONE NO. 7, SEVEN NO. 9, ONE NO. 11, AND 33, 40)SWITCH, BRAKE, ASSY. (INC. ONE NO. 7, SEVEN NO. 9, ONE NO. 11, AND 33, 40)
-
330609-478 HOUSING, BRAKE SWITCH (ON/OFF)HOUSING, BRAKE SWITCH (ON/OFF)
-
340609-452 SWITCH, DIMMER, BRAKESWITCH, DIMMER, BRAKE
-
350609-050 PIN, ACTUATORPIN, ACTUATOR
-
360609-314 ACTUATOR, BRAKE, PARKINGACTUATOR, BRAKE, PARKING
-
370609-051 RING, RETAININGRING, RETAINING
-
380609-313 SPRING, ACTUATORSPRING, ACTUATOR
-
390609-385 CONTROL, HANDWARMER (INC. THREE NO. 9 AND ONE NO. 11)CONTROL, HANDWARMER (INC. THREE NO. 9 AND ONE NO. 11)
-
400609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
410609-315 AXLE, LEVER, BRAKEAXLE, LEVER, BRAKE
-
420609-266 LEVER, BRAKELEVER, BRAKE
-
430687-089 CABLE, BRAKECABLE, BRAKE
-
440109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
450123-406 NUT, FLANGENUT, FLANGE
