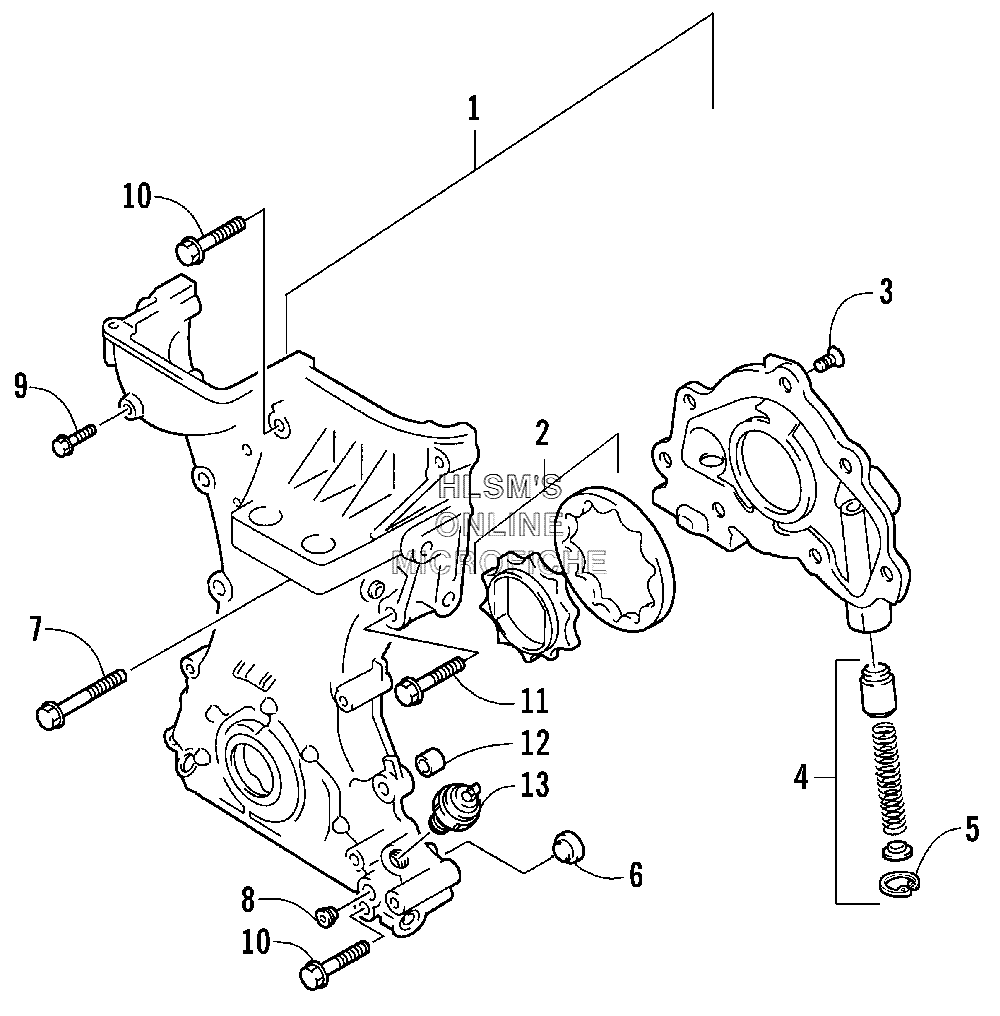

TIMING CHAIN COVER/OIL PUMP ASSY. для Arctic Cat T660 Turbo Trail Taupe - 2004 года выпуска`
-
№АртикулНазвание
-
13006-219 TIMING CHAIN COVER/OIL PUMP ASSY. (INC. 2, 5)TIMING CHAIN COVER/OIL PUMP ASSY. (INC. 2, 5)
-
23006-220 ROTOR SETROTOR SET
-
33004-284 SCREWSCREW
-
43006-221 VALVE SET (INC. 5)VALVE SET (INC. 5)
-
53006-374 CIRCLIPCIRCLIP
-
63006-592 FILTER, OIL GALLERYFILTER, OIL GALLERY
-
73006-755 BOLTBOLT
-
83423-386 PLUGPLUG
-
93008-376 BOLTBOLT
-
103004-427 BOLTBOLT
-
113004-948 BOLTBOLT
-
123005-206 PIN, DOWELPIN, DOWEL
-
133006-844 SWITCH, OIL PRESSURE, ASSY.SWITCH, OIL PRESSURE, ASSY.
