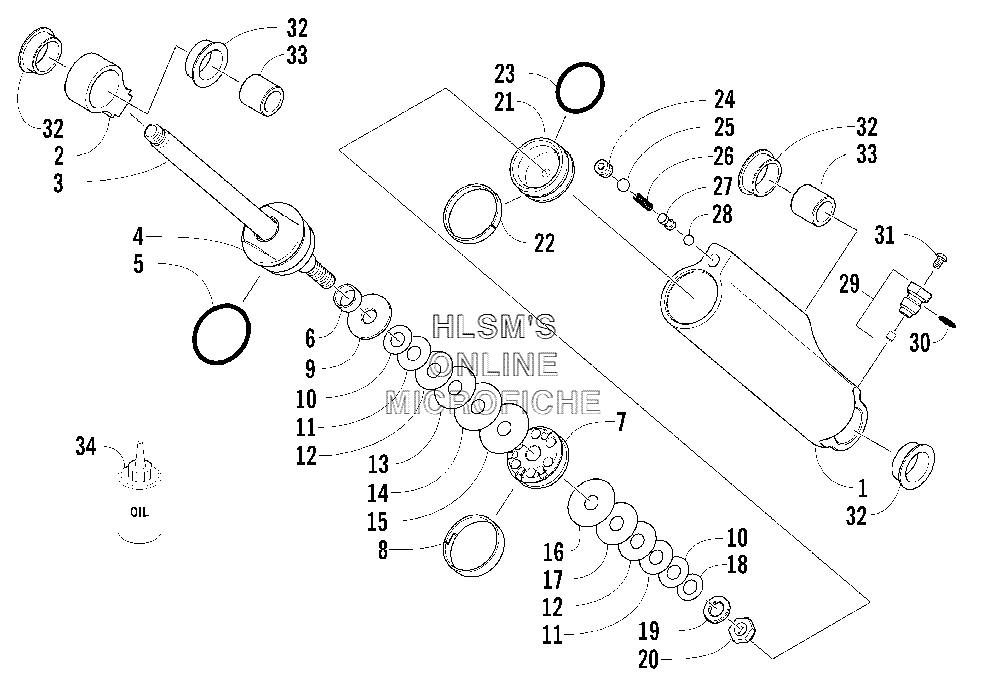

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat T660 Turbo Trail (Black) - 2004 года выпуска`
-
№АртикулНазвание
-
-1704-138 COMPLETE SHOCK ASSY.COMPLETE SHOCK ASSY.
-
12604-327 BODY, SHOCKBODY, SHOCK
-
21604-763 EYELET, SHOCKEYELET, SHOCK
-
32604-364 ROD, SHOCKROD, SHOCK
-
41703-452 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
62604-168 SPACER, SHAFTSPACER, SHAFT
-
72604-620 PISTON, 0.041 IN., ORIFICE (INC. 8)PISTON, 0.041 IN., ORIFICE (INC. 8)
-
81604-643 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
132603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
142603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
152603-135 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
162603-126 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
172603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
182603-045 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
191604-273 WASHER, BACKUPWASHER, BACKUP
-
200623-696 NUT, LOCKNUT, LOCK
-
210704-791 PISTON, FLOATING (INC. 22, 23)PISTON, FLOATING (INC. 22, 23)
-
222604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
232604-152 O-RINGO-RING
-
248080-305 SCREW, SETSCREW, SET
-
252604-432 BALLBALL
-
262604-433 SPRINGSPRING
-
272604-429 ROD, SPRINGROD, SPRING
-
282604-431 BALLBALL
-
290704-383 VALVE, PRESSURE (INC. 30)VALVE, PRESSURE (INC. 30)
-
301604-284 O-RINGO-RING
-
310624-433 SCREW, VALVESCREW, VALVE
-
321604-262 BUSHING, SHOCKBUSHING, SHOCK
-
331604-397 SLEEVE, EYELETSLEEVE, EYELET
-
342639-151 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
