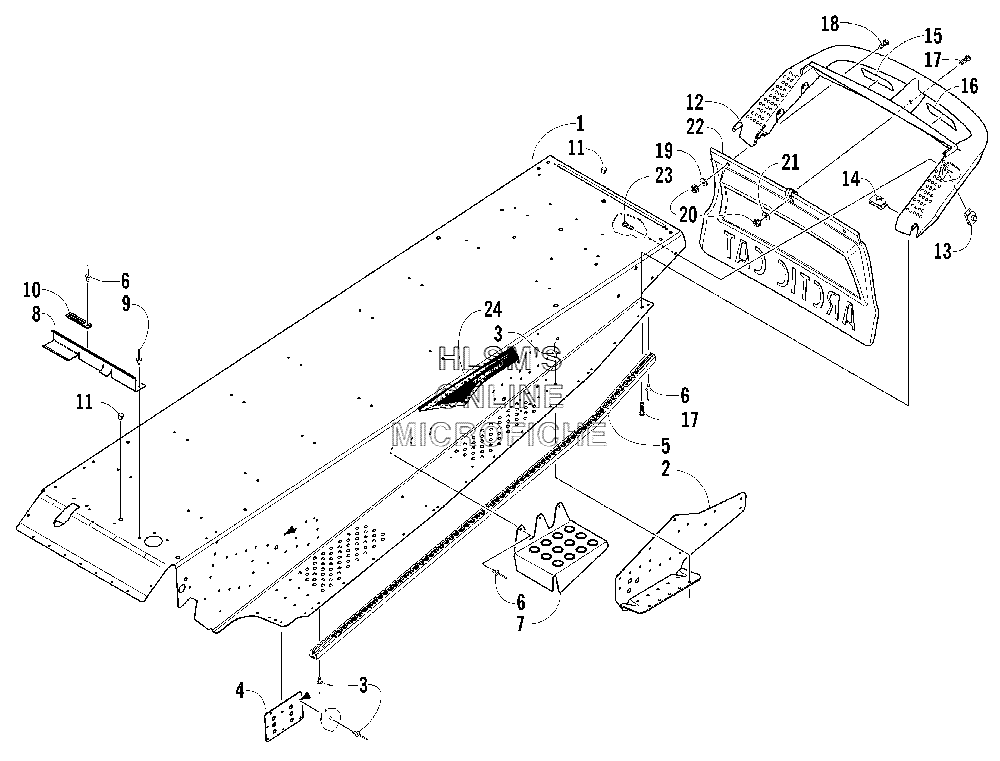

TUNNEL AND REAR BUMPER для Arctic Cat T660 Turbo Touring Taupe - 2004 года выпуска`
-
№АртикулНазвание
-
11718-542 TUNNEL ASSY. (INC. 2, 3)TUNNEL ASSY. (INC. 2, 3)
-
21706-032 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
21706-033 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30623-072 RIVET, SOLIDRIVET, SOLID
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
38060-506 RIVETRIVET
-
42706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
52706-118 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
52706-119 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
68060-506 RIVETRIVET
-
72706-386 FOOTREST (REAR/RIGHT)FOOTREST (REAR/RIGHT)
-
72706-387 FOOTREST (REAR/LEFT)FOOTREST (REAR/LEFT)
-
80707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
90623-166 RIVETRIVET
-
103002-964 CLAMPCLAMP
-
110623-562 PLUG, HOLEPLUG, HOLE
-
121606-200 BUMPER (REAR)BUMPER (REAR)
-
130623-771 NUT, UNUT, U
-
140623-427 NUT, UNUT, U
-
155611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
165611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
178017-580 SCREW, MACHINESCREW, MACHINE
-
188017-579 SCREW, MACHINESCREW, MACHINE
-
190623-184 WASHERWASHER
-
208048-366 NUT, LOCKNUT, LOCK
-
218050-217 WASHERWASHER
-
221606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
238017-580 SCREW, MACHINESCREW, MACHINE
-
245611-598 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
245611-599 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
