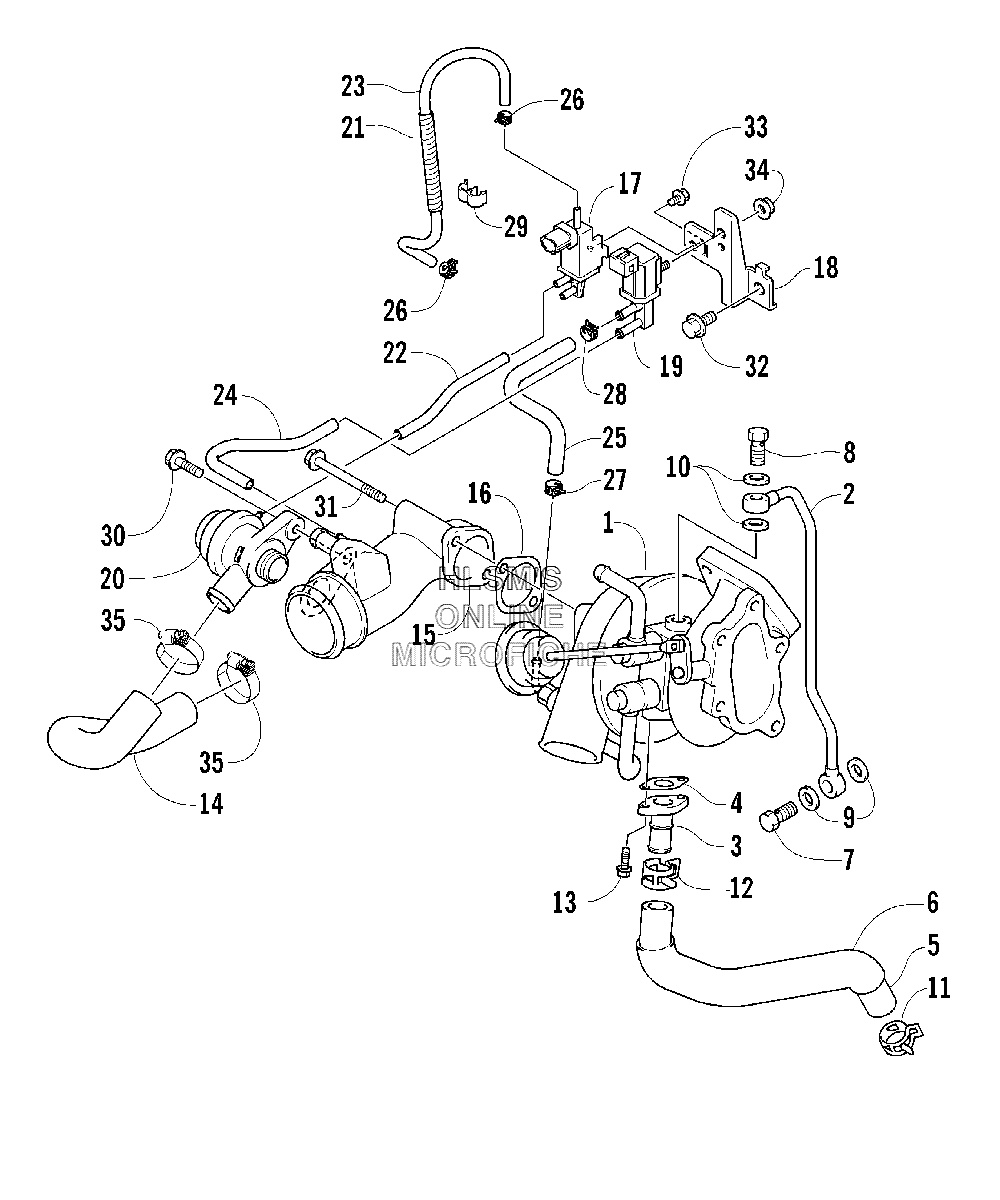

TURBOCHARGER ASSEMBLY для Arctic Cat T660 Turbo Touring (Black) - 2004 года выпуска
-
№АртикулНазвание
-
13006-819 TURBOCHARGER ASSEMBLYTURBOCHARGER ASSEMBLY
-
23006-821 PIPE, OIL INLETPIPE, OIL INLET
-
33006-871 JOINT, OIL DRAINJOINT, OIL DRAIN
-
43006-872 GASKET, OIL DRAINGASKET, OIL DRAIN
-
53006-822 HOSE, OIL DRAINHOSE, OIL DRAIN
-
63006-823 PROTECTORPROTECTOR
-
73006-892 BOLTBOLT
-
83006-873 BOLTBOLT
-
93006-112 GASKET, OIL INLET PIPEGASKET, OIL INLET PIPE
-
103402-436 GASKET, OIL INLET PIPEGASKET, OIL INLET PIPE
-
113006-855 CLAMP, HOSECLAMP, HOSE
-
123008-488 CLAMP, HOSECLAMP, HOSE
-
133004-338 BOLTBOLT
-
143006-820 HOSE, AIR BYPASSHOSE, AIR BYPASS
-
153006-824 PIPE, AIR INTAKEPIPE, AIR INTAKE
-
163006-874 GASKET, AIR INTAKE PIPEGASKET, AIR INTAKE PIPE
-
173006-883 VALVE, AIR BYPASS VALVE CONTROLVALVE, AIR BYPASS VALVE CONTROL
-
183006-840 BRACKET, MOUNTINGBRACKET, MOUNTING
-
193006-884 VALVE, WASTE GATE CONTROLVALVE, WASTE GATE CONTROL
-
203006-885 VALVE, AIR BYPASSVALVE, AIR BYPASS
-
213006-888 TUBE, PROTECTIVETUBE, PROTECTIVE
-
220693-929 HOSE, VACUUM, BYPASS CONTROL VALVE/AIR BYPASS VALVEHOSE, VACUUM, BYPASS CONTROL VALVE/AIR BYPASS VALVE
-
230693-929 HOSE, VACUUM, BYPASS CONTROL VALVE/INTERCOOLERHOSE, VACUUM, BYPASS CONTROL VALVE/INTERCOOLER
-
243006-851 HOSE, WASTE GATE CONTROL VALVE OUTLETHOSE, WASTE GATE CONTROL VALVE OUTLET
-
253006-852 HOSE, WASTE GATE CONTROL VALVE INLETHOSE, WASTE GATE CONTROL VALVE INLET
-
263008-037 CLAMP, HOSECLAMP, HOSE
-
273006-854 CLAMP, HOSECLAMP, HOSE
-
283423-480 CLAMP, HOSECLAMP, HOSE
-
293005-387 CLIP, HOSECLIP, HOSE
-
303004-376 BOLTBOLT
-
313006-893 BOLTBOLT
-
323004-630 BOLTBOLT
-
333004-987 SCREWSCREW
-
343004-488 NUTNUT
-
351623-182 CLAMP, HOSECLAMP, HOSE
