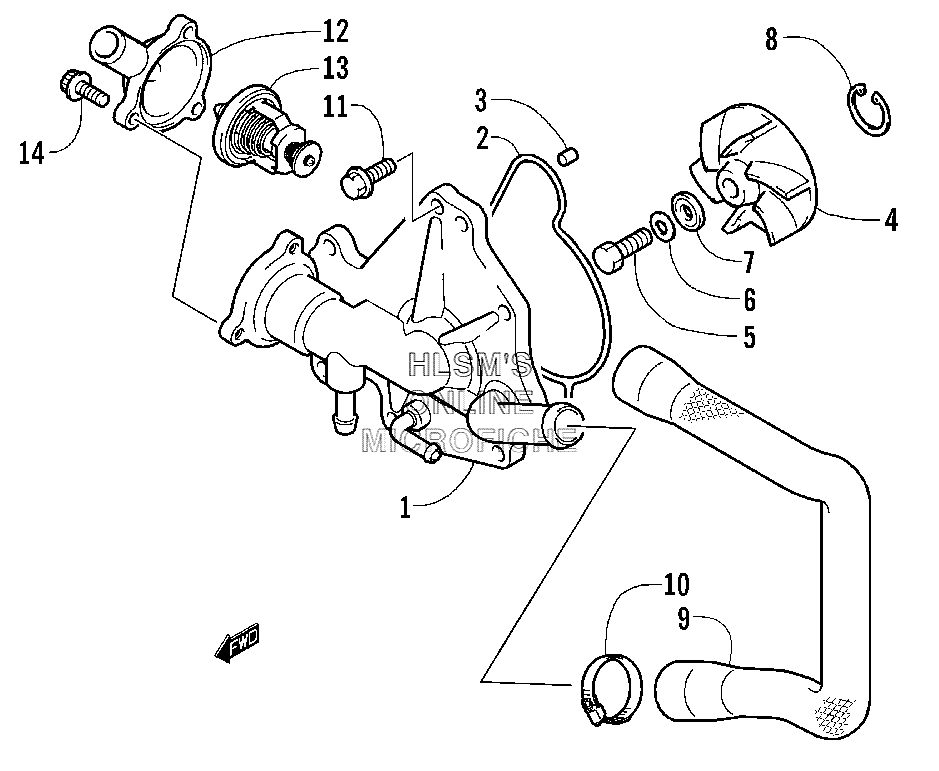

WATER PUMP AND THERMOSTAT для Arctic Cat Sabercat 700 EFI LX (Red) - 2004 года выпуска`
-
№АртикулНазвание
-
13006-355 COVER, WATER PUMPCOVER, WATER PUMP
-
23006-356 O-RING, WATER PUMP COVERO-RING, WATER PUMP COVER
-
33005-899 PIN, DOWELPIN, DOWEL
-
43005-697 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
53003-426 BOLTBOLT
-
63003-432 GASKETGASKET
-
73003-431 WASHERWASHER
-
83004-009 CIRCLIPCIRCLIP
-
93006-521 HOSE, WATER INLETHOSE, WATER INLET
-
103006-324 CLAMPCLAMP
-
113004-341 BOLTBOLT
-
123006-704 CAP, THERMOSTATCAP, THERMOSTAT
-
133006-358 THERMOSTATTHERMOSTAT
-
143004-512 BOLTBOLT
