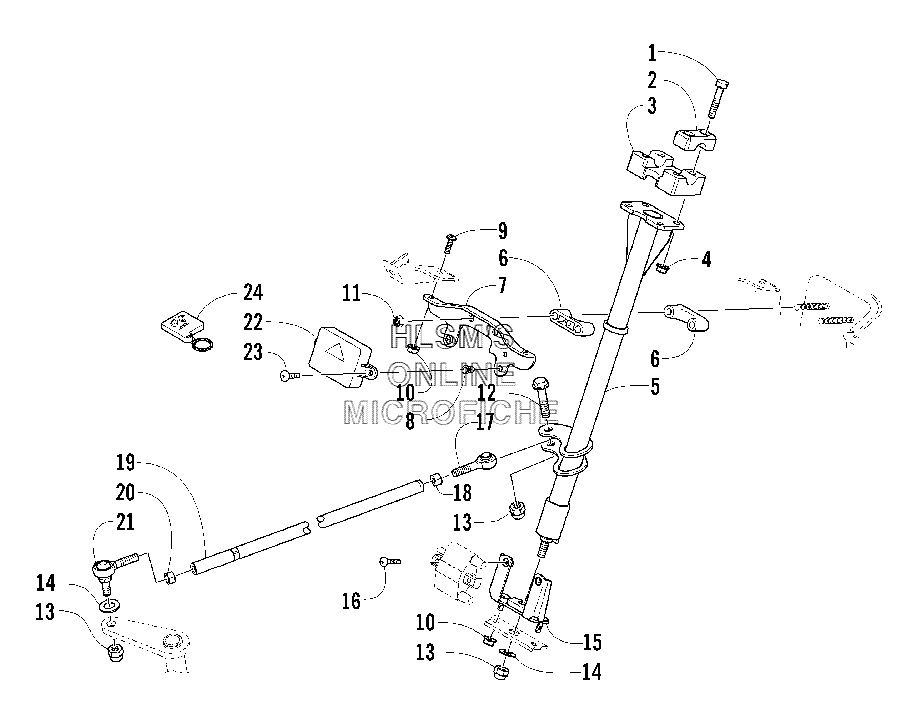

STEERING POST ASSY. для Arctic Cat Sabercat 700 EFI EXT (Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    8002-137 SCREW, CAP
    SCREW, CAP
  • 2
    0605-506 CAP, ADJUSTING BLOCK
    CAP, ADJUSTING BLOCK
  • 3
    0605-507 BLOCK, ADJUSTING
    BLOCK, ADJUSTING
  • 4
    8048-426 NUT, LOCK
    NUT, LOCK
  • 5
    0705-844 POST, STEERING
    POST, STEERING
  • 6
    0605-576 BLOCK, MOUNTING, STEERING POST
    BLOCK, MOUNTING, STEERING POST
  • 7
    0605-649 PLATE, RETAINING
    PLATE, RETAINING
  • 7
    0705-934 PLATE, RETAINING (INC. 8)
    PLATE, RETAINING (INC. 8)
  • 8
    0623-779 INSERT
    INSERT
  • 9
    8017-581 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    8048-366 NUT, LOCK
    NUT, LOCK
  • 11
    8040-426 NUT, LOCK
    NUT, LOCK
  • 12
    8004-225 SCREW, CAP
    SCREW, CAP
  • 13
    0623-025 NUT, LOCK
    NUT, LOCK
  • 14
    0623-044 WASHER
    WASHER
  • 15
    0705-947 STOP, STEERING POST
    STOP, STEERING POST
  • 16
    8017-402 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0605-504 BALL JOINT, TIE ROD (RIGHT)
    BALL JOINT, TIE ROD (RIGHT)
  • 18
    0623-294 NUT, HEX (RIGHT)
    NUT, HEX (RIGHT)
  • 19
    0605-672 TUBE, TIE ROD
    TUBE, TIE ROD
  • 20
    0123-917 NUT, HEX (LEFT)
    NUT, HEX (LEFT)
  • 21
    0605-511 BALL JOINT, TIE ROD (LEFT)
    BALL JOINT, TIE ROD (LEFT)
  • 22
    0630-149 MODULE, CONTROL, REMOTE STARTER
    MODULE, CONTROL, REMOTE STARTER
  • 23
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0630-146 CONTROL REMOTE
    CONTROL REMOTE
