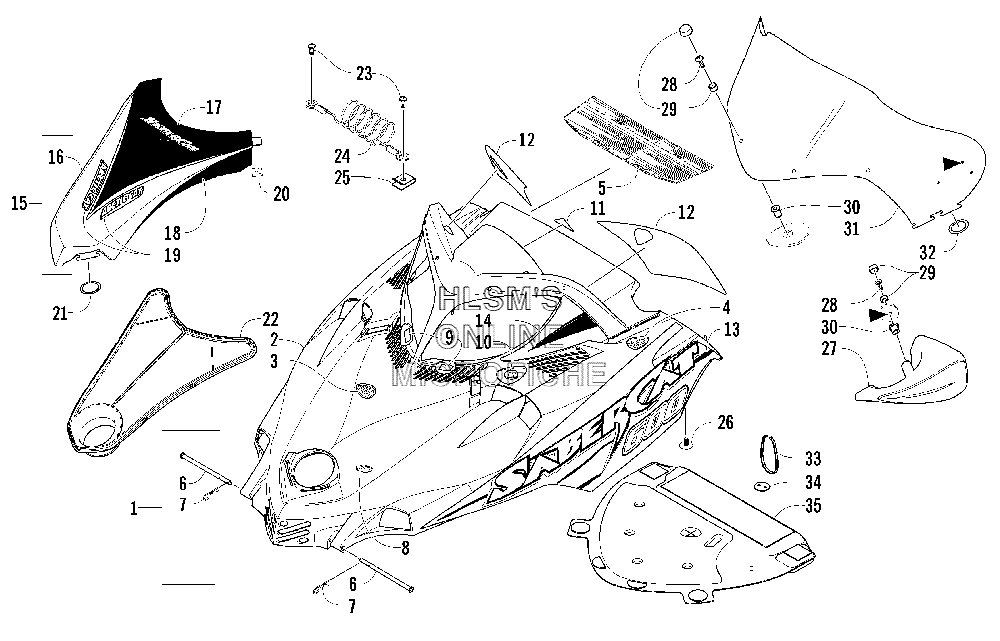

HOOD AND WINDSHIELD ASSY. для Arctic Cat Sabercat 600 LX (Red) - 2004 года выпуска`
-
№АртикулНазвание
-
11718-375 HOOD W/DECALS (BLACK) (INC. 2, 14)HOOD W/DECALS (BLACK) (INC. 2, 14)
-
21718-450 HOOD W/O DECALS (BLACK) (INC. 3, 10)HOOD W/O DECALS (BLACK) (INC. 3, 10)
-
30717-169 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
40717-170 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-171 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
55611-483 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
61623-026 PIN, CLEVISPIN, CLEVIS
-
70623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
83606-130 FOIL, HOODFOIL, HOOD
-
96990-252 STRIP, VELCROSTRIP, VELCRO
-
106990-253 DISC, VELCRODISC, VELCRO
-
113611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
125611-478 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
125611-479 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
135611-498 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
135611-499 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
145611-504 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
145611-505 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
151718-445 COVER, HOOD (SILVER) (INC. 16, 20)COVER, HOOD (SILVER) (INC. 16, 20)
-
162706-338 COVER, HOOD W/O DECALS (SILVER)COVER, HOOD W/O DECALS (SILVER)
-
175611-473 DECAL, COVER (CENTER)DECAL, COVER (CENTER)
-
185611-534 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
185611-533 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
195611-508 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
202606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
212606-801 O-RINGO-RING
-
223606-150 SCREEN, HOODSCREEN, HOOD
-
230623-302 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
242606-726 CABLE, HOODCABLE, HOOD
-
251623-052 U, NUTU, NUT
-
260623-544 PLUGPLUG
-
272639-477 KIT, MIRROR (INC. SIX NO. 28, 30)KIT, MIRROR (INC. SIX NO. 28, 30)
-
280623-902 SCREW, MACHINESCREW, MACHINE
-
290124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
300623-845 NUT, EXPANSIONNUT, EXPANSION
-
313606-069 WINDSHIELDWINDSHIELD
-
320616-032 O-RINGO-RING
-
330623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
341623-208 WASHERWASHER
-
350617-445 FOAM, HOODFOAM, HOOD
