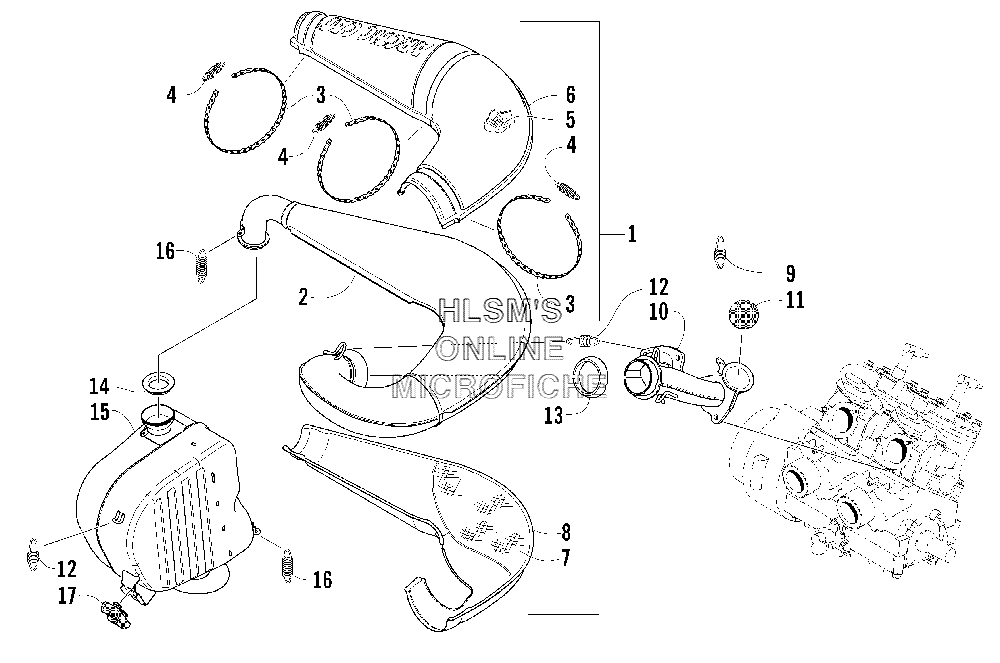

EXHAUST ASSY. для Arctic Cat Sabercat 600 EFI LX (Green) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-858 CHAMBER, EXPANSION, ASSY. (INC. 2, 8)
    CHAMBER, EXPANSION, ASSY. (INC. 2, 8)
  • 2
    0712-976 CHAMBER, EXPANSION
    CHAMBER, EXPANSION
  • 3
    0624-526 TIE, PERFORATED BAND (5 FT)
    TIE, PERFORATED BAND (5 FT)
  • 3
    0624-541 TIE, PERFORATED BAND (25 FT)
    TIE, PERFORATED BAND (25 FT)
  • 4
    1612-178 SPRING, EXHAUST
    SPRING, EXHAUST
  • 5
    1612-590 PACKING, EXPANSION CHAMBER (UPPER)
    PACKING, EXPANSION CHAMBER (UPPER)
  • 6
    1612-574 COVER, EXPANSION CHAMBER (UPPER)
    COVER, EXPANSION CHAMBER (UPPER)
  • 7
    1612-591 PACKING, EXPANSION CHAMBER (LOWER)
    PACKING, EXPANSION CHAMBER (LOWER)
  • 8
    1612-573 COVER, EXPANSION CHAMBER (LOWER)
    COVER, EXPANSION CHAMBER (LOWER)
  • 9
    0612-668 SPRING, EXTENSION
    SPRING, EXTENSION
  • 10
    0712-966 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 11
    1612-678 MOUNT, EXPANSION CHAMBER
    MOUNT, EXPANSION CHAMBER
  • 12
    0612-820 SPRING, EXTENSION
    SPRING, EXTENSION
  • 13
    1612-014 GASKET, EXHAUST
    GASKET, EXHAUST
  • 14
    1612-323 GASKET, EXHAUST, TAILPIPE
    GASKET, EXHAUST, TAILPIPE
  • 15
    1712-022 RESONATOR
    RESONATOR
  • 16
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 17
    1612-685 MOUNT, RESONATOR, RUBBER
    MOUNT, RESONATOR, RUBBER
