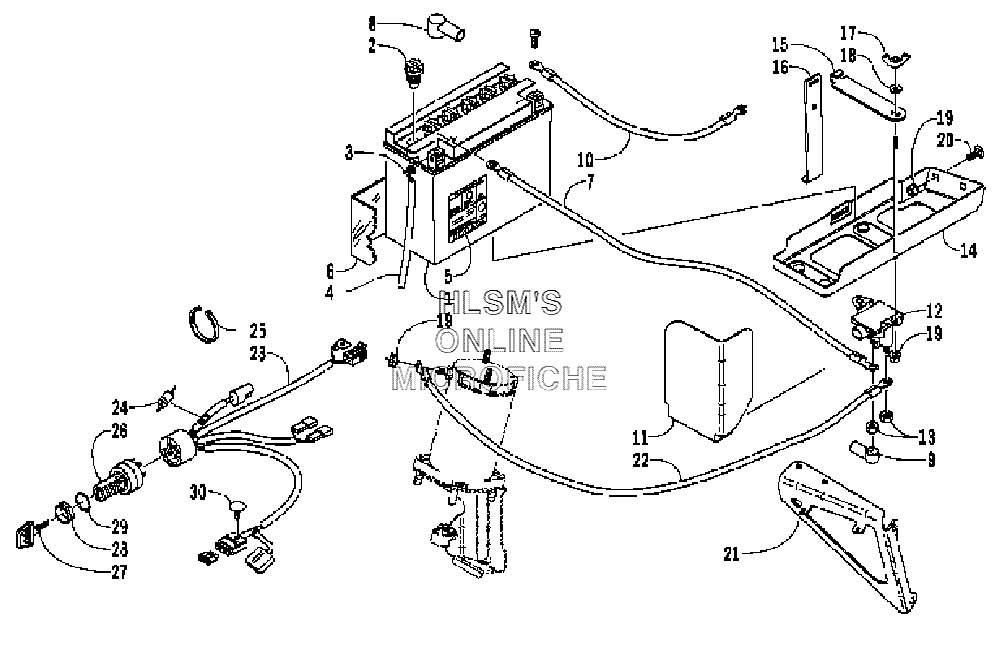

BATTERY- SOLENOID- AND CABLES (OPTIONAL) для Arctic Cat Sabercat 500 (Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-059 BATTERY (INC. 2, 6)
    BATTERY (INC. 2, 6)
  • 2
    0645-246 CAP, BATTERY
    CAP, BATTERY
  • 3
    0645-152 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    0645-263 HOSE, BATTERY VENT
    HOSE, BATTERY VENT
  • 5
    0645-151 DECAL, WARNING, BATTERY
    DECAL, WARNING, BATTERY
  • 6
    0645-082 WRAP, HEAT, BATTERY
    WRAP, HEAT, BATTERY
  • 7
    0645-427 CABLE, BATTERY/SOLENOID (INC. 8, 9)
    CABLE, BATTERY/SOLENOID (INC. 8, 9)
  • 8
    0645-019 BOOT, TERMINAL, BATTERY
    BOOT, TERMINAL, BATTERY
  • 9
    0645-327 BOOT, TERMINAL, SOLENOID
    BOOT, TERMINAL, SOLENOID
  • 10
    0645-136 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 11
    0745-220 SHIELD, HEAT
    SHIELD, HEAT
  • 12
    0645-414 SOLENOID
    SOLENOID
  • 13
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 14
    0745-205 TRAY, BATTERY
    TRAY, BATTERY
  • 15
    0645-243 STRAP, BATTERY, TOP
    STRAP, BATTERY, TOP
  • 16
    0645-311 STRAP, BATTERY, SIDE
    STRAP, BATTERY, SIDE
  • 17
    0623-325 NUT, WING
    NUT, WING
  • 18
    8050-217 WASHER
    WASHER
  • 19
    8048-366 NUT, LOCK
    NUT, LOCK
  • 20
    8011-039 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 21
    0745-204 BRACKET, MOUNTING, BATTERY TRAY
    BRACKET, MOUNTING, BATTERY TRAY
  • 22
    0645-428 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 23
    0686-978 HARNESS, ELECTRIC START (INC. 24, 25)
    HARNESS, ELECTRIC START (INC. 24, 25)
  • 24
    0630-002 DIODE, CHARGING
    DIODE, CHARGING
  • 25
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
  • 26
    0609-449 SWITCH, IGNITION (INC. 27)
    SWITCH, IGNITION (INC. 27)
  • 28
    0609-113 NUT, RETAINING
    NUT, RETAINING
  • 29
    0123-899 WASHER, IGNITION SWITCH
    WASHER, IGNITION SWITCH
  • 30
    0623-589 CLIP, RETAINING
    CLIP, RETAINING
