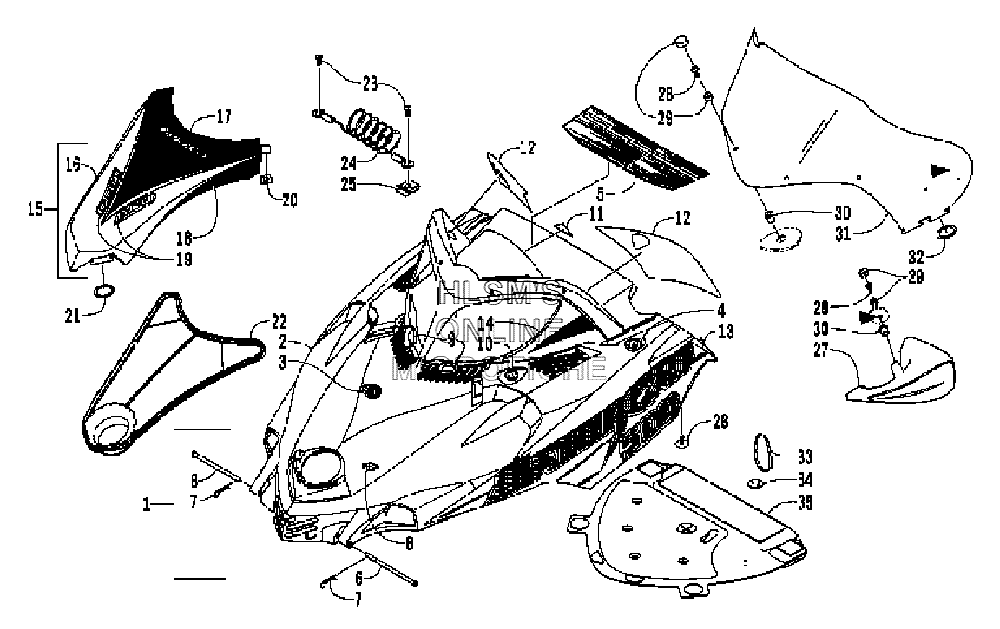

HOOD AND WINDSHIELD ASSY. для Arctic Cat Sabercat 500 LX (Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-561 HOOD W/DECALS (INC. 2, 14)
    HOOD W/DECALS (INC. 2, 14)
  • 1
    1718-397 HOOD W/DECALS (INC. 2, 14)
    HOOD W/DECALS (INC. 2, 14)
  • 1
    1718-538 HOOD W/DECALS (INC. 2, 14)
    HOOD W/DECALS (INC. 2, 14)
  • 1
    1718-428 HOOD W/DECALS (INC. 2, 14)
    HOOD W/DECALS (INC. 2, 14)
  • 2
    1718-237 HOOD W/O DECALS (INC. 3, 10)
    HOOD W/O DECALS (INC. 3, 10)
  • 2
    1718-450 HOOD W/O DECALS (INC. 3, 10)
    HOOD W/O DECALS (INC. 3, 10)
  • 3
    0717-169 FOAM, HOOD (MIDDLE)
    FOAM, HOOD (MIDDLE)
  • 4
    0717-170 FOAM, HOOD (REAR/RIGHT)
    FOAM, HOOD (REAR/RIGHT)
  • 4
    0717-171 FOAM, HOOD (REAR/LEFT)
    FOAM, HOOD (REAR/LEFT)
  • 5
    4611-496 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 5
    5611-483 DECAL, WARNING, GENERAL AND BRAKE
    DECAL, WARNING, GENERAL AND BRAKE
  • 6
    1623-026 PIN, CLEVIS
    PIN, CLEVIS
  • 7
    0623-847 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 8
    3606-130 FOIL, HOOD
    FOIL, HOOD
  • 9
    6990-252 STRIP, VELCRO
    STRIP, VELCRO
  • 10
    6990-253 DISC, VELCRO
    DISC, VELCRO
  • 11
    3611-611 DECAL, "MADE IN U.S.A.", DOMED
    DECAL, "MADE IN U.S.A.", DOMED
  • 12
    5611-488 DECAL, CONSOLE (RIGHT)
    DECAL, CONSOLE (RIGHT)
  • 12
    5611-489 DECAL, CONSOLE (LEFT)
    DECAL, CONSOLE (LEFT)
  • 12
    5611-478 DECAL, CONSOLE (RIGHT)
    DECAL, CONSOLE (RIGHT)
  • 12
    5611-479 DECAL, CONSOLE (LEFT)
    DECAL, CONSOLE (LEFT)
  • 13
    5611-500 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 13
    5611-501 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 13
    5611-496 DECAL, HOOD (LOWER/RIGHT)
    DECAL, HOOD (LOWER/RIGHT)
  • 13
    5611-497 DECAL, HOOD (LOWER/LEFT)
    DECAL, HOOD (LOWER/LEFT)
  • 14
    5611-506 DECAL, HOOD (UPPER/RIGHT)
    DECAL, HOOD (UPPER/RIGHT)
  • 14
    5611-507 DECAL, HOOD (UPPER/LEFT)
    DECAL, HOOD (UPPER/LEFT)
  • 14
    5611-504 DECAL, HOOD (UPPER/RIGHT)
    DECAL, HOOD (UPPER/RIGHT)
  • 14
    5611-505 DECAL, HOOD (UPPER/LEFT)
    DECAL, HOOD (UPPER/LEFT)
  • 15
    1718-376 COVER, HOOD (INC. 16, 20)
    COVER, HOOD (INC. 16, 20)
  • 15
    1718-445 COVER, HOOD (INC. 16, 20)
    COVER, HOOD (INC. 16, 20)
  • 16
    2706-338 COVER, HOOD W/O DECALS
    COVER, HOOD W/O DECALS
  • 17
    5611-482 DECAL, COVER (CENTER)
    DECAL, COVER (CENTER)
  • 17
    5611-473 DECAL, COVER (CENTER)
    DECAL, COVER (CENTER)
  • 18
    5611-534 DECAL, COVER (RIGHT)
    DECAL, COVER (RIGHT)
  • 18
    5611-533 DECAL, COVER (LEFT)
    DECAL, COVER (LEFT)
  • 19
    5611-509 DECAL, COVER (FRONT)
    DECAL, COVER (FRONT)
  • 19
    5611-508 DECAL, COVER (FRONT)
    DECAL, COVER (FRONT)
  • 20
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 21
    2606-801 O-RING
    O-RING
  • 22
    3606-150 SCREEN, HOOD
    SCREEN, HOOD
  • 23
    0623-302 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 24
    2606-726 CABLE, HOOD
    CABLE, HOOD
  • 25
    1623-052 U, NUT
    U, NUT
  • 26
    0623-544 PLUG
    PLUG
  • 27
    2639-477 KIT, MIRROR (INC. SIX NO. 28, 30)
    KIT, MIRROR (INC. SIX NO. 28, 30)
  • 28
    0623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 29
    0124-054 SNAP CAP W/WASHER
    SNAP CAP W/WASHER
  • 30
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 31
    3606-116 WINDSHIELD
    WINDSHIELD
  • 31
    3606-068 WINDSHIELD
    WINDSHIELD
  • 31
    3606-117 WINDSHIELD
    WINDSHIELD
  • 31
    3606-069 WINDSHIELD
    WINDSHIELD
  • 32
    0616-032 O-RING
    O-RING
  • 33
    0623-144 CABLE TIE, 17.5 IN.
    CABLE TIE, 17.5 IN.
  • 34
    1623-208 WASHER
    WASHER
  • 35
    0617-445 FOAM, HOOD
    FOAM, HOOD
