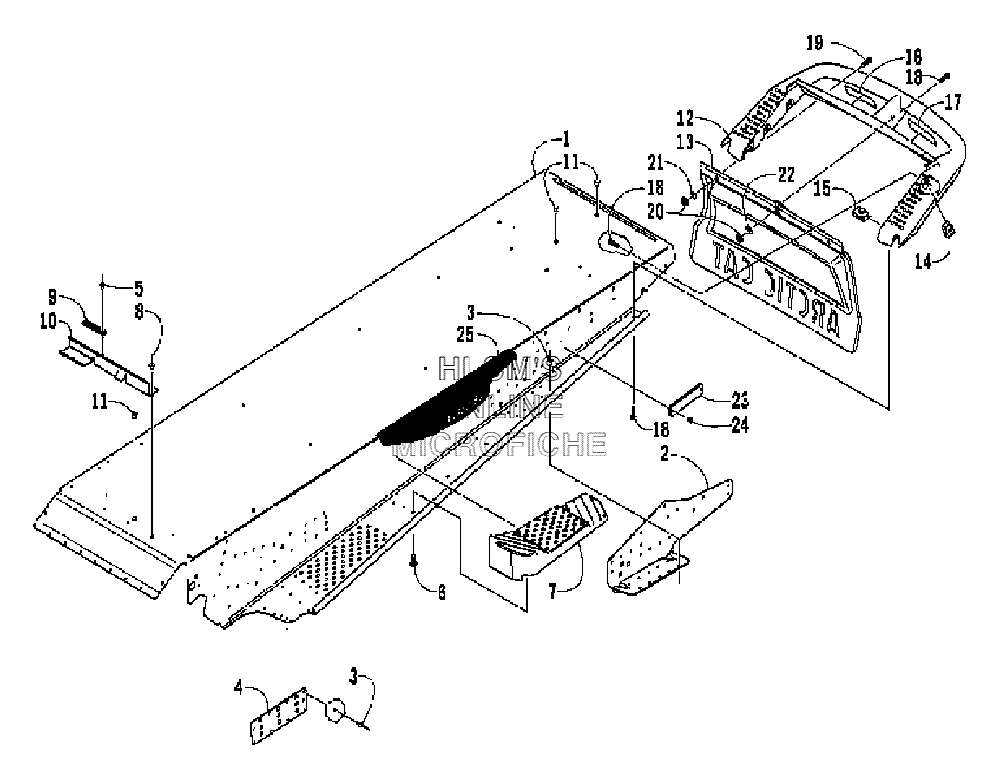

TUNNEL AND REAR BUMPER для Arctic Cat Panther 370 - 2004 года выпуска`
-
№АртикулНазвание
-
10718-941 TUNNEL ASSY. (INC. 2, 4)TUNNEL ASSY. (INC. 2, 4)
-
20716-868 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
20716-869 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30623-072 RIVET, SOLIDRIVET, SOLID
-
30123-418 RIVET, SOLIDRIVET, SOLID
-
38060-506 RIVETRIVET
-
42706-111 PLATE, SUSPENSION MOUNTING ? FRONTPLATE, SUSPENSION MOUNTING ? FRONT
-
58060-506 RIVETRIVET
-
60623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
71606-478 FOOTREST (REAR/RIGHT)FOOTREST (REAR/RIGHT)
-
71606-479 FOOTREST (REAR/LEFT)FOOTREST (REAR/LEFT)
-
80623-166 RIVETRIVET
-
93002-964 CLAMP, WIRECLAMP, WIRE
-
100707-704 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
110623-562 PLUG, HOLEPLUG, HOLE
-
121606-200 BUMPER (REAR)BUMPER (REAR)
-
131606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
140623-771 NUT, UNUT, U
-
150623-427 NUT, UNUT, U
-
165611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
175611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
188017-580 SCREW, MACHINESCREW, MACHINE
-
198017-579 SCREW, MACHINESCREW, MACHINE
-
208048-366 NUT, LOCKNUT, LOCK
-
210623-184 WASHERWASHER
-
228050-217 WASHERWASHER
-
230606-029 REFLECTOR (REAR/RED)REFLECTOR (REAR/RED)
-
240623-269 CLIP, RETAININGCLIP, RETAINING
-
255611-396 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
255611-397 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
