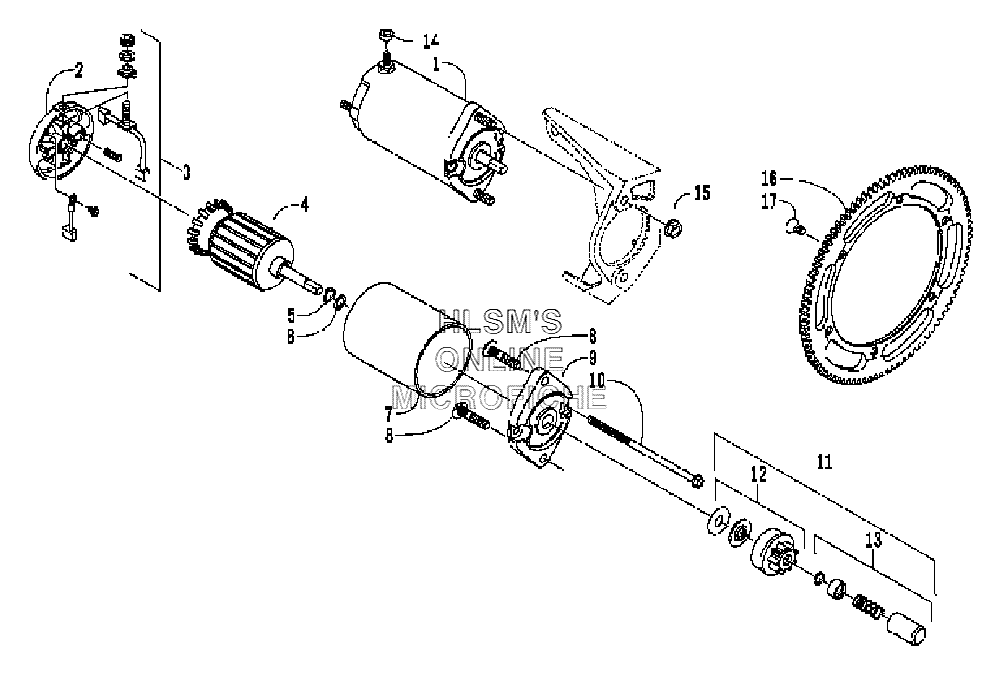

ELECTRIC START- STARTER MOTOR ASSY. (OPTIONAL) для Arctic Cat Panther 370 International - 2004 года выпуска`
-
№АртикулНазвание
-
-1639-908 ELECTIC START KITELECTIC START KIT
-
10745-052 MOTOR, STARTER (INC. 2, 13)MOTOR, STARTER (INC. 2, 13)
-
20645-277 CAP, COMMUTATOR (INC. 3)CAP, COMMUTATOR (INC. 3)
-
30645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
40645-189 ARMATUREARMATURE
-
50645-126 WASHER, WAVEWASHER, WAVE
-
60645-127 WASHER, THRUSTWASHER, THRUST
-
80623-093 BOLT, RIBBEDBOLT, RIBBED
-
90645-188 CAP, DRIVECAP, DRIVE
-
100645-191 BOLT, STARTER MOTORBOLT, STARTER MOTOR
-
110745-145 PINION DRIVE ASSY. (INC. 12, 13)PINION DRIVE ASSY. (INC. 12, 13)
-
120745-146 KIT, PINION DRIVEKIT, PINION DRIVE
-
130645-186 KIT, PINION STOPPERKIT, PINION STOPPER
-
140623-122 NUTNUT
-
158048-426 NUT, LOCKNUT, LOCK
-
160645-168 GEAR, RINGGEAR, RING
-
171623-128 SCREW, MACHINESCREW, MACHINE
