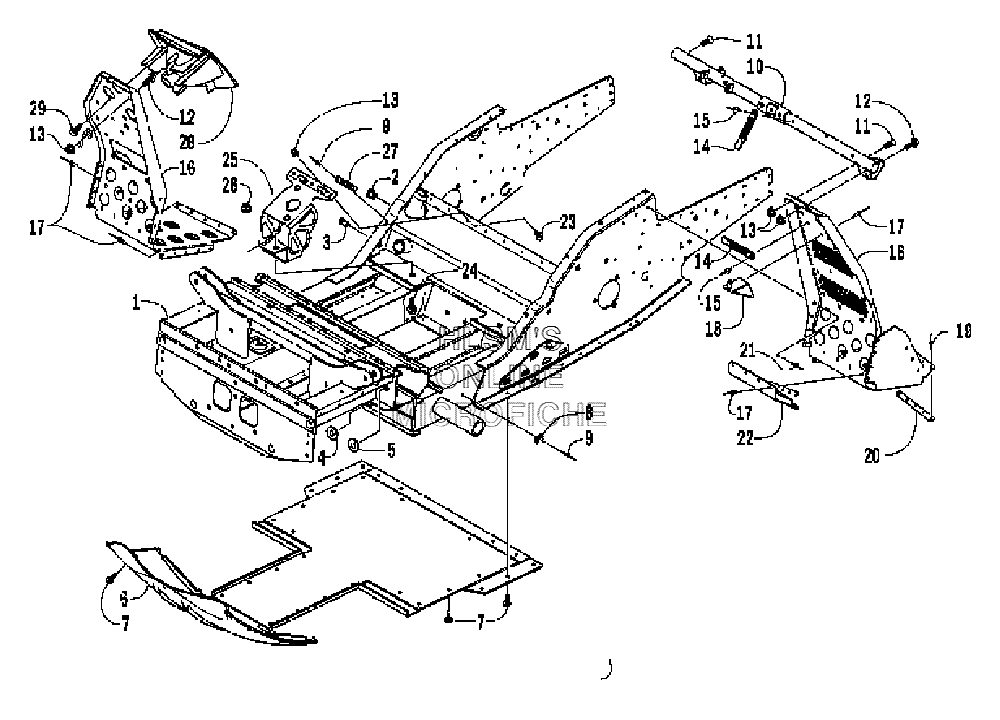

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat Pantera 800 EFI (Gold) - 2004 года выпуска`
-
№АртикулНазвание
-
10707-908 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-420 INSERT, A, ARM MOUNTINSERT, A, ARM MOUNT
-
50607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
61606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
71623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
98060-506 RIVETRIVET
-
100705-940 SUPPORT, STEERINGSUPPORT, STEERING
-
118019-614 SCREW, MACHINESCREW, MACHINE
-
128020-040 SCREW, CAPSCREW, CAP
-
138048-366 NUT, LOCKNUT, LOCK
-
143606-173 STRAP, HOLD, DOWN, AIR SILENCERSTRAP, HOLD, DOWN, AIR SILENCER
-
158061-628 RIVETRIVET
-
161706-884 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
162706-113 FOOTREST (LEFT)FOOTREST (LEFT)
-
170623-166 RIVETRIVET
-
180705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
190623-282 RIVETRIVET
-
202706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
210623-341 RIVETRIVET
-
221706-886 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
221706-887 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
238020-039 SCREW, CAPSCREW, CAP
-
248020-130 SCREW, CAPSCREW, CAP
-
250708-398 BRACKET, MOUNTING, ENGINEBRACKET, MOUNTING, ENGINE
-
268048-426 NUT, LOCKNUT, LOCK
-
273002-964 CLAMP, WIRECLAMP, WIRE
-
281706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
290623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
