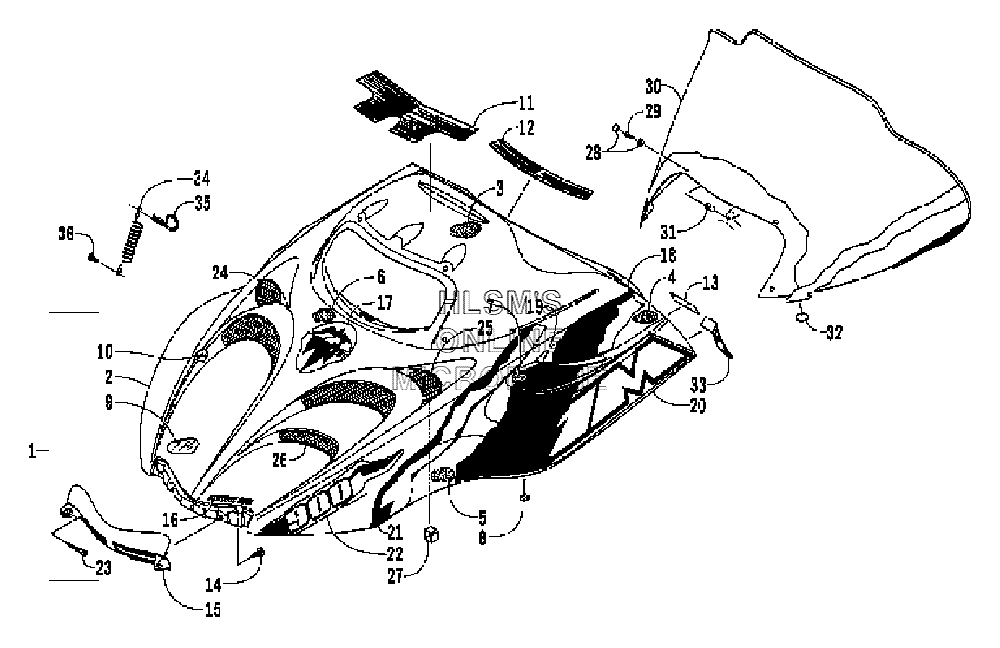

HOOD AND WINDSHIELD ASSY. для Arctic Cat Mountain Cat 900 EFI (Green 159) - 2004 года выпуска
-
№АртикулНазвание
-
11718-439 HOOD W/DECALS (INC. 2, 22)HOOD W/DECALS (INC. 2, 22)
-
21718-433 HOOD W/O DECALS (INC. 3, 15)HOOD W/O DECALS (INC. 3, 15)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-164 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-147 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
50717-162 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
50717-141 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
60717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
70617-426 FOAM, VENT, HOODFOAM, VENT, HOOD
-
80623-078 DISC, VELCRODISC, VELCRO
-
91606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
91606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
102606-233 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
113611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
123611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
133611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
140623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
153606-032 HINGE, HOODHINGE, HOOD
-
165611-411 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
175611-435 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
185611-420 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
185611-421 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
195611-418 DECAL, HOOD, VENT (LOWER/RIGHT)DECAL, HOOD, VENT (LOWER/RIGHT)
-
195611-419 DECAL, HOOD, VENT (LOWER/LEFT)DECAL, HOOD, VENT (LOWER/LEFT)
-
205611-412 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
205611-413 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
215611-422 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
215611-423 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
225611-430 DECAL, HOOD, "900" (RIGHT)DECAL, HOOD, "900" (RIGHT)
-
225611-431 DECAL, HOOD, "900" (LEFT)DECAL, HOOD, "900" (LEFT)
-
231623-016 SCREW, MACHINESCREW, MACHINE
-
242706-194 SCREEN, VENT, HOOD (RIGHT/SILVER)SCREEN, VENT, HOOD (RIGHT/SILVER)
-
252706-195 SCREEN, VENT, HOOD (UPPER/LEFT/SILVER)SCREEN, VENT, HOOD (UPPER/LEFT/SILVER)
-
262606-325 SCREEN, VENT, HOOD (LEFT/SILVER)SCREEN, VENT, HOOD (LEFT/SILVER)
-
270123-394 CLIP, RETAININGCLIP, RETAINING
-
280124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
290623-902 SCREW, MACHINESCREW, MACHINE
-
303606-084 WINDSHIELDWINDSHIELD
-
310623-845 NUT, EXPANSIONNUT, EXPANSION
-
320616-032 O-RINGO-RING
-
331606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
342606-247 CABLE, HOODCABLE, HOOD
-
350623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
360623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
