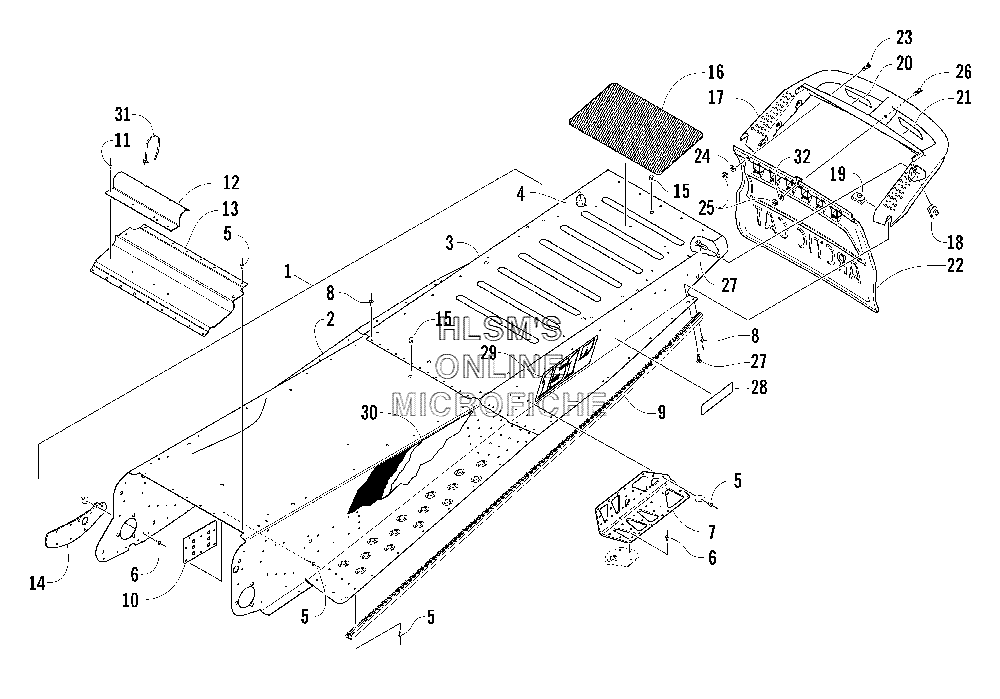

TUNNEL AND REAR BUMPER для Arctic Cat Mountain Cat 800 EFI (Red 151) - 2004 года выпуска
-
№АртикулНазвание
-
11718-564 TUNNEL ASSY. (INC. 2, 8)TUNNEL ASSY. (INC. 2, 8)
-
23606-307 TUNNEL (FRONT)TUNNEL (FRONT)
-
33606-311 TUNNEL REARTUNNEL REAR
-
41623-078 STUD, SELF, CLINCHINGSTUD, SELF, CLINCHING
-
50623-072 RIVETRIVET
-
50123-418 RIVETRIVET
-
50623-806 RIVETRIVET
-
58060-486 RIVETRIVET
-
68060-448 RIVETRIVET
-
71706-918 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
71706-917 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
88060-484 RIVETRIVET
-
92606-420 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
92606-419 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
102706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
110623-166 RIVETRIVET
-
120607-751 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
132606-849 COVER, DRIVEN SHAFTCOVER, DRIVEN SHAFT
-
142606-905 PLATE, BACKING, DROPCASE GUARDPLATE, BACKING, DROPCASE GUARD
-
150623-562 PLUG, HOLEPLUG, HOLE
-
162606-134 PAD, RUBBERPAD, RUBBER
-
171606-200 BUMPER (REAR)BUMPER (REAR)
-
180623-771 NUT, UNUT, U
-
190623-427 NUT, UNUT, U
-
205611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
215611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
222606-460 SNOWFLAPSNOWFLAP
-
221606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
238017-579 SCREW, MACHINESCREW, MACHINE
-
240623-184 WASHERWASHER
-
258048-366 NUT, LOCKNUT, LOCK
-
268017-580 SCREW, MACHINESCREW, MACHINE
-
278017-581 SCREW, MACHINESCREW, MACHINE
-
280411-647 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
295611-459 DECAL, "151", TUNNELDECAL, "151", TUNNEL
-
305611-464 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
305611-465 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
310623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
328050-217 WASHERWASHER
