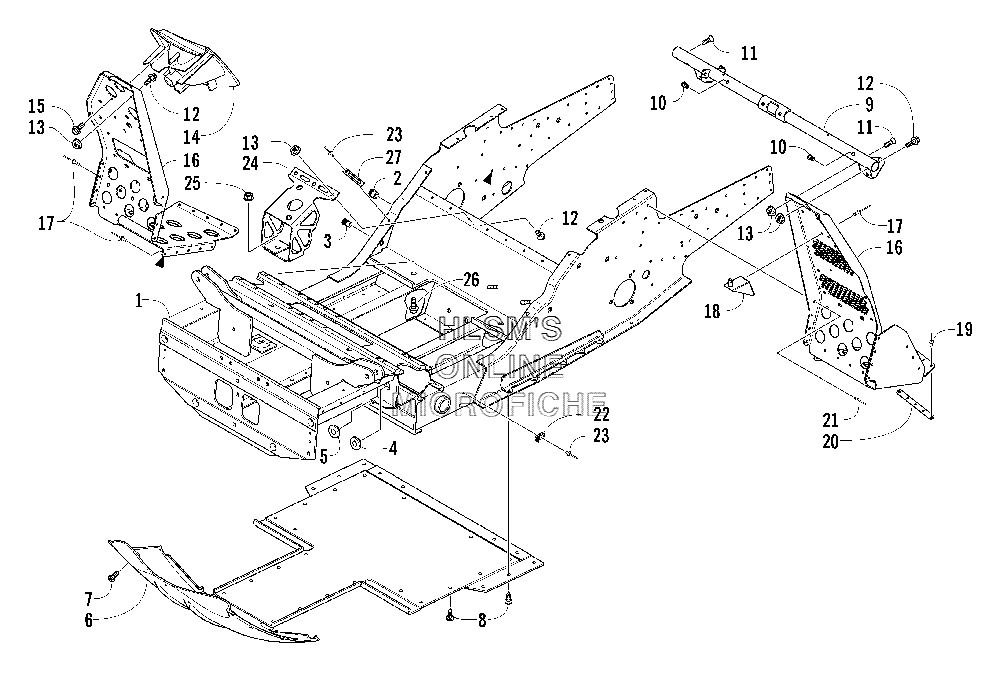

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat Mountain Cat 570 - 2004 года выпуска`
-
№АртикулНазвание
-
10707-810 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
50607-420 INSERT, A, ARM MOUNTINSERT, A, ARM MOUNT
-
61606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
70623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90705-866 SUPPORT, STEERING (INC. 10)SUPPORT, STEERING (INC. 10)
-
100623-779 INSERTINSERT
-
118019-614 SCREW, MACHINESCREW, MACHINE
-
128020-039 SCREW, CAPSCREW, CAP
-
138048-366 NUT, LOCKNUT, LOCK
-
141606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
150623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-800 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
162606-733 FOOTREST (LEFT)FOOTREST (LEFT)
-
170623-166 RIVETRIVET
-
180705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
190623-282 RIVETRIVET
-
202706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
210623-341 RIVETRIVET
-
220623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
238060-506 RIVETRIVET
-
240708-398 BRACKET, MOUNTING, ENGINEBRACKET, MOUNTING, ENGINE
-
258048-426 NUT, LOCKNUT, LOCK
-
268020-130 SCREW, CAPSCREW, CAP
-
273002-964 CLAMP, WIRECLAMP, WIRE
