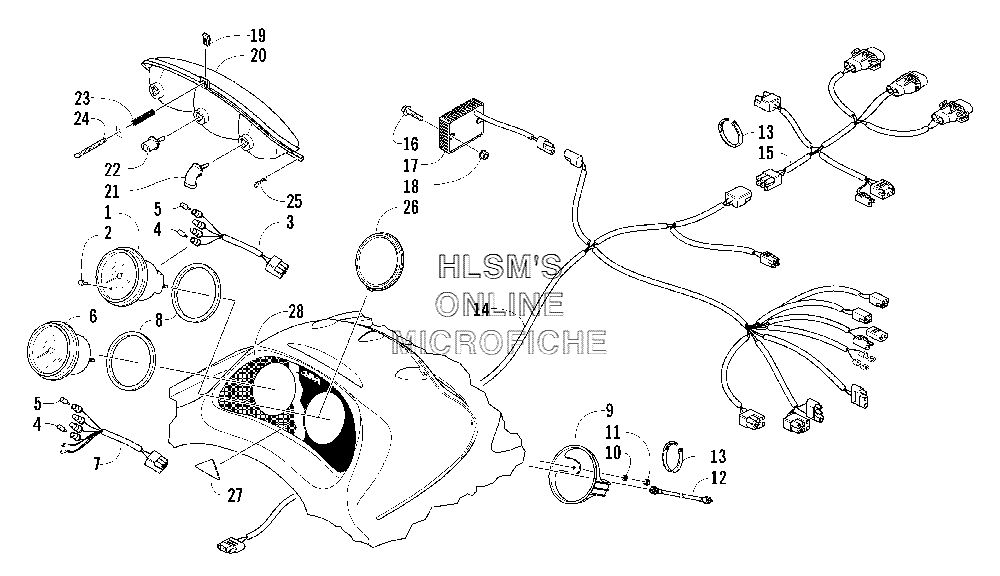

HEADLIGHT- INSTRUMENTS- AND WIRING ASSY. для Arctic Cat Mountain Cat 570 (International) - 2004 года выпуска`
-
№АртикулНазвание
-
10620-239 SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)SPEEDOMETER (INC. 2, 3, THREE NO. 4, AND ONE NO. 5)
-
20620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
30620-151 HARNESS, BULB ? SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)HARNESS, BULB ? SPEEDOMETER (INC. THREE NO. 4 AND ONE NO. 5)
-
40620-149 BULB, INNERDICATORBULB, INNERDICATOR
-
50230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
60620-277 TACHOMETER (INC. 7, THREE NO. 4, AND ONE NO. 5)TACHOMETER (INC. 7, THREE NO. 4, AND ONE NO. 5)
-
70620-278 HARNESS, TACHOMETER (INC. THREE NO. 4 AND ONE NO. 5)HARNESS, TACHOMETER (INC. THREE NO. 4 AND ONE NO. 5)
-
80620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
90620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
108050-212 WASHERWASHER
-
110623-038 NUT W/WASHERNUT W/WASHER
-
120620-269 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
130123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
140686-766 HARNESS, MAINHARNESS, MAIN
-
150686-856 HARNESS, HOODHARNESS, HOOD
-
168020-044 SCREW, CAPSCREW, CAP
-
170630-142 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
188048-366 NUT, LOCKNUT, LOCK
-
190623-757 NUT, UNUT, U
-
200609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
210609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
220609-252 BULB, HEADLIGHT, LOW BEAMBULB, HEADLIGHT, LOW BEAM
-
230623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
240623-467 SCREW, THUMBSCREW, THUMB
-
250623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
262606-069 PLUG, GAUGE HOLEPLUG, GAUGE HOLE
-
273611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
285611-425 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
