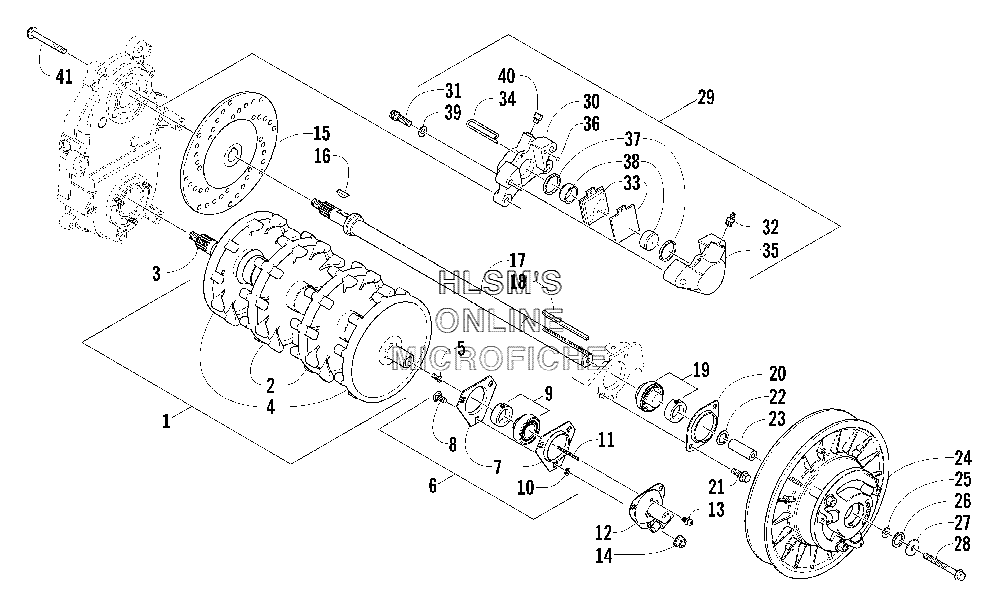

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat King Cat 900 (Black) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-111 TRACK DRIVE ASSEMBLY (INC. 2, 5)
    TRACK DRIVE ASSEMBLY (INC. 2, 5)
  • 2
    1602-526 SPROCKET, DRIVE, INNER
    SPROCKET, DRIVE, INNER
  • 3
    1602-376 DRIVESHAFT
    DRIVESHAFT
  • 4
    1602-527 SPROCKET, DRIVE, OUTER
    SPROCKET, DRIVE, OUTER
  • 5
    0120-247 BUSHING, DRIVE
    BUSHING, DRIVE
  • 6
    0702-476 PLATE, FLANGE, BEARING ASSEMBLY (INC. 7, 10)
    PLATE, FLANGE, BEARING ASSEMBLY (INC. 7, 10)
  • 7
    0602-198 PLATE, FLANGE
    PLATE, FLANGE
  • 8
    8011-130 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    1602-375 BEARING, 1 IN. W/LOCK COLLAR
    BEARING, 1 IN. W/LOCK COLLAR
  • 10
    0623-810 RING, SOLDER
    RING, SOLDER
  • 11
    0602-154 CABLE, ADAPTER
    CABLE, ADAPTER
  • 12
    0720-013 ADAPTER, DRIVE (INC. 13)
    ADAPTER, DRIVE (INC. 13)
  • 13
    0104-062 FITTING, GREASE
    FITTING, GREASE
  • 14
    8048-426 NUT, LOCK
    NUT, LOCK
  • 15
    1602-205 DISC, BRAKE
    DISC, BRAKE
  • 16
    0602-598 KEY
    KEY
  • 17
    0702-266 SHAFT, DRIVEN
    SHAFT, DRIVEN
  • 18
    0101-076 KEY
    KEY
  • 19
    1602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
    BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
  • 20
    0602-892 PLATE, FLANGE, BEARING
    PLATE, FLANGE, BEARING
  • 21
    8020-130 SCREW, CAP
    SCREW, CAP
  • 22
    0623-118 WASHER
    WASHER
  • 22
    0623-119 WASHER
    WASHER
  • 23
    0648-066 SHAFT, STUB
    SHAFT, STUB
  • 24
    0726-168 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 25
    0123-053 WASHER
    WASHER
  • 26
    0123-694 WASHER
    WASHER
  • 27
    0123-019 WASHER
    WASHER
  • 28
    8020-142 SCREW, CAP
    SCREW, CAP
  • 29
    0602-829 CALIPER, BRAKE ASSEMBLY (INC. 30, 40)
    CALIPER, BRAKE ASSEMBLY (INC. 30, 40)
  • 31
    8005-679 SCREW, CAP
    SCREW, CAP
  • 32
    0602-707 SCREW, BLEED, ASSEMBLY
    SCREW, BLEED, ASSEMBLY
  • 33
    0702-229 PAD, BRAKE, SET (INC. 34)
    PAD, BRAKE, SET (INC. 34)
  • 34
    0602-706 PIN, RETAINING
    PIN, RETAINING
  • 36
    0602-729 O-RING, HOUSING
    O-RING, HOUSING
  • 37
    0602-583 O-RING
    O-RING
  • 38
    0602-708 PISTON
    PISTON
  • 39
    8050-272 WASHER
    WASHER
  • 40
    0602-590 FITTING, ADAPTER
    FITTING, ADAPTER
  • 41
    8020-315 SCREW, CAP
    SCREW, CAP
