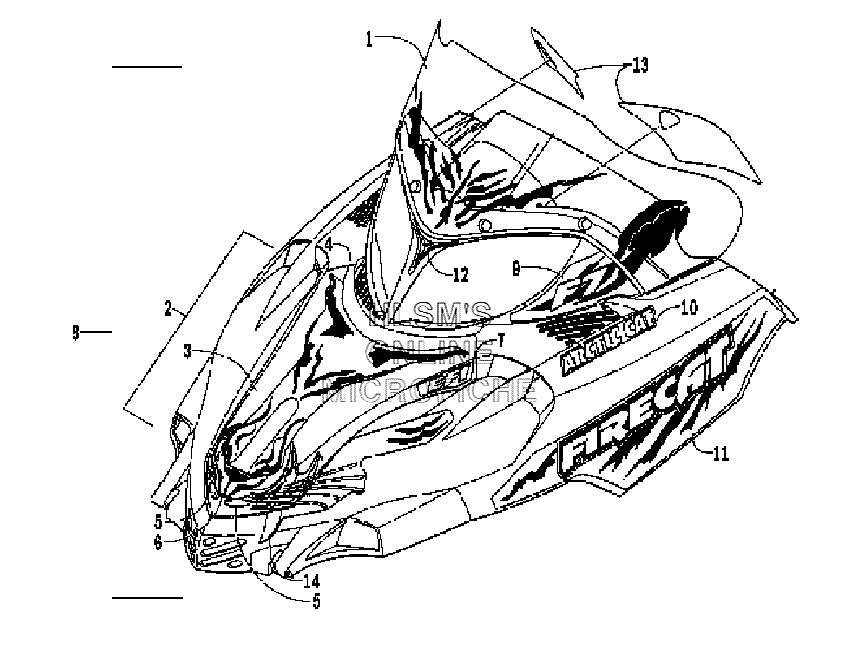

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1.375'' (Tiger Black) - 2004 года выпуска`
-
№АртикулНазвание
-
13606-274 WINDSHIELDWINDSHIELD
-
21718-527 COVER, HOOD W/DECALS (INC. 3, 6)COVER, HOOD W/DECALS (INC. 3, 6)
-
32706-031 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-806 DECAL, COVER, CRESTDECAL, COVER, CREST
-
55611-808 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
55611-809 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
65611-807 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
81718-492 HOOD W/DECALS (INC. 9, 14)HOOD W/DECALS (INC. 9, 14)
-
95611-794 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
95611-795 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
105611-800 DECAL, HOOD, VENTDECAL, HOOD, VENT
-
115611-804 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
115611-805 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
125611-801 DECAL, HOOD (CENTER)DECAL, HOOD (CENTER)
-
135611-796 DECAL, HOOD, CONSOLE (RIGHT)DECAL, HOOD, CONSOLE (RIGHT)
-
135611-797 DECAL, HOOD, CONSOLE (LEFT)DECAL, HOOD, CONSOLE (LEFT)
-
145611-802 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
145611-803 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
