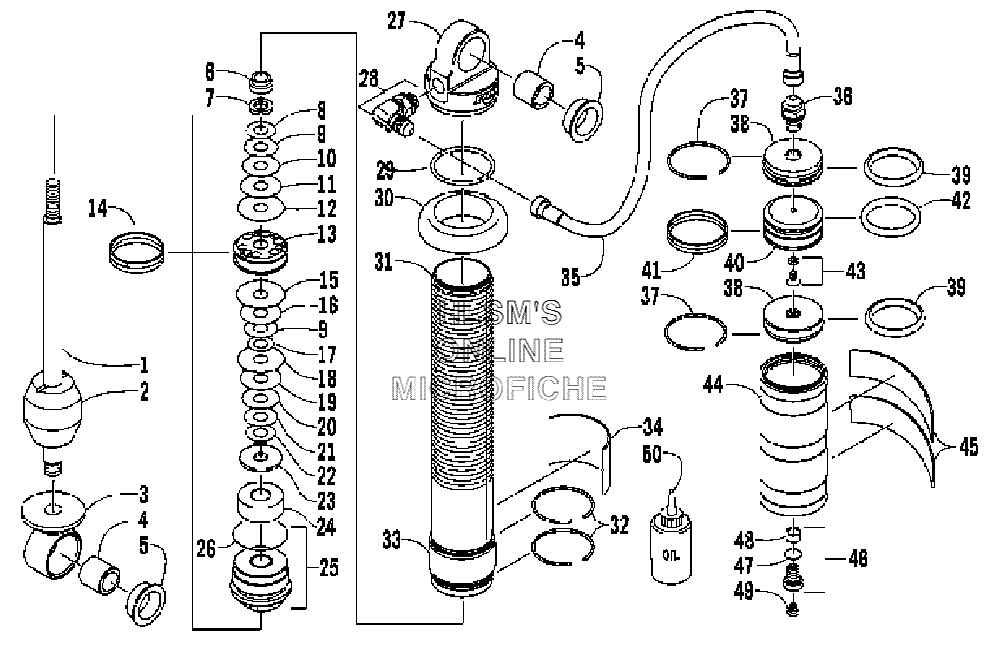

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat Firecat 700 Sno Pro 1.375'' (Black) - 2004 года выпуска

  • №
    Артикул
    Название
  • -
    1703-484 COMPLETE SHOCK ABSORBER (RIGHT)
    COMPLETE SHOCK ABSORBER (RIGHT)
  • -
    1703-485 COMPLETE SHOCK ABSORBER (LEFT)
    COMPLETE SHOCK ABSORBER (LEFT)
  • 1
    2603-192 ROD, SHOCK
    ROD, SHOCK
  • 2
    2603-284 BUMPER, SHOCK
    BUMPER, SHOCK
  • 3
    0603-910 EYELET, SHOCK
    EYELET, SHOCK
  • 4
    1603-209 SLEEVE, SHOCK EYELET
    SLEEVE, SHOCK EYELET
  • 5
    0603-955 BUSHING, SHOCK
    BUSHING, SHOCK
  • 6
    0603-301 NUT, LOCK
    NUT, LOCK
  • 7
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 8
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 9
    0603-338 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 10
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 11
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 12
    0603-347 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 13
    2603-309 PISTON, 0.093 IN., ORIFICE
    PISTON, 0.093 IN., ORIFICE
  • 14
    0603-292 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 15
    0603-349 VALVE, SHOCK 1.300 X 0.008 IN.
    VALVE, SHOCK 1.300 X 0.008 IN.
  • 16
    0603-342 VALVE, SHOCK 1.100 X 0.006 IN.
    VALVE, SHOCK 1.100 X 0.006 IN.
  • 17
    0603-878 VALVE, SHOCK 0.700 X 0.012 IN.
    VALVE, SHOCK 0.700 X 0.012 IN.
  • 18
    0603-346 VALVE, SHOCK 1.250 X 0.008 IN.
    VALVE, SHOCK 1.250 X 0.008 IN.
  • 19
    0603-343 VALVE, SHOCK 1.100 X 0.008 IN.
    VALVE, SHOCK 1.100 X 0.008 IN.
  • 20
    0603-340 VALVE, SHOCK 1.000 X 0.008 IN.
    VALVE, SHOCK 1.000 X 0.008 IN.
  • 21
    0603-337 VALVE, SHOCK 0.900 X 0.008 IN.
    VALVE, SHOCK 0.900 X 0.008 IN.
  • 22
    0603-334 VALVE, SHOCK 0.800 X 0.008 IN.
    VALVE, SHOCK 0.800 X 0.008 IN.
  • 23
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 24
    2603-194 SPACER
    SPACER
  • 25
    2604-413 END CAP, SHOCK (INC. 26)
    END CAP, SHOCK (INC. 26)
  • 26
    1604-420 O-RING
    O-RING
  • 27
    2603-310 END CAP, SHOCK
    END CAP, SHOCK
  • 28
    2603-205 FITTING, ELBOW
    FITTING, ELBOW
  • 29
    0603-438 O-RING, END CAP
    O-RING, END CAP
  • 30
    2603-221 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 31
    2603-222 BODY, SHOCK
    BODY, SHOCK
  • 32
    2603-245 RETAINER, WEAR SLEEVE
    RETAINER, WEAR SLEEVE
  • 33
    2603-246 SLEEVE, WEAR
    SLEEVE, WEAR
  • 34
    2603-311 DECAL, SHOCK
    DECAL, SHOCK
  • 35
    2603-204 HOSE, SHOCK
    HOSE, SHOCK
  • 36
    2603-206 FITTING, SHOCK
    FITTING, SHOCK
  • 37
    0604-992 RING, RETAINING
    RING, RETAINING
  • 38
    1603-936 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 39
    0603-671 O-RING
    O-RING
  • 40
    2604-517 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 41
    1603-235 STRAP, PISTON
    STRAP, PISTON
  • 42
    1603-236 O-RING
    O-RING
  • 43
    1604-316 SCREW, RELIEF W/O-RING
    SCREW, RELIEF W/O-RING
  • 44
    1603-935 BODY, RESERVOIR
    BODY, RESERVOIR
  • 45
    2604-658 DECAL, SHOCK
    DECAL, SHOCK
  • 46
    0703-341 VALVE, PRESSURE, ASSEMBLY (INC. 47, 48)
    VALVE, PRESSURE, ASSEMBLY (INC. 47, 48)
  • 47
    1604-318 O-RING
    O-RING
  • 49
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 50
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
