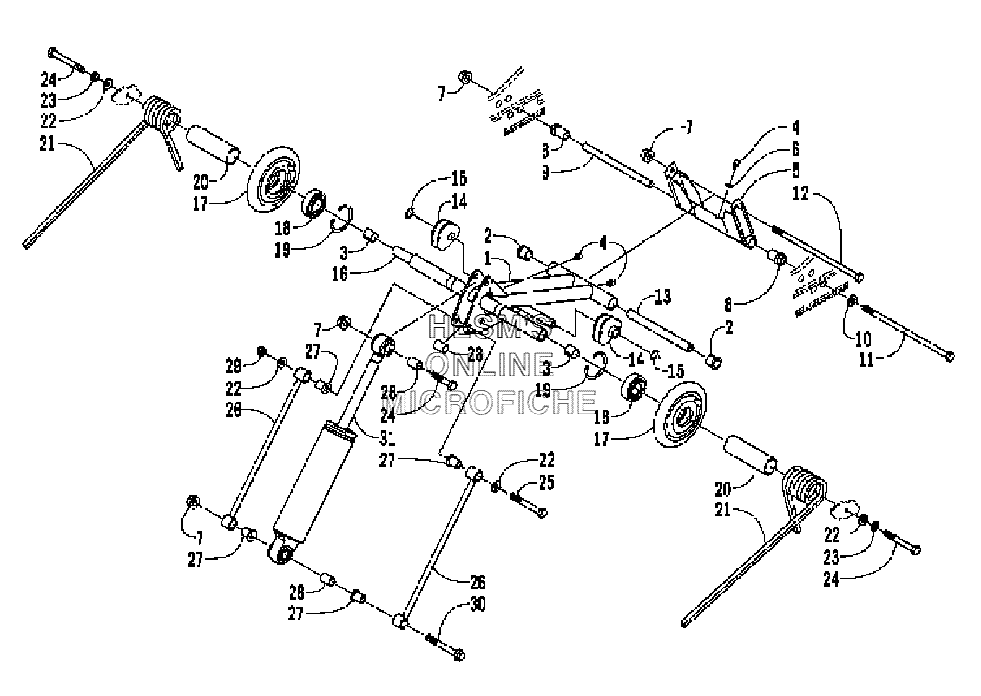

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Firecat 700 Sno Pro 1'' (Green) - 2004 года выпуска
-
№АртикулНазвание
-
11704-005 ARM, IDLER (INC. 2, 3 AND TWO NO. 4)ARM, IDLER (INC. 2, 3 AND TWO NO. 4)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
32604-147 BEARINGBEARING
-
41623-010 FITTING, GREASEFITTING, GREASE
-
51704-019 ARM (REAR) (INC. ONE NO. 4 AND 6)ARM (REAR) (INC. ONE NO. 4 AND 6)
-
61623-011 WASHER, GREASE FITTINGWASHER, GREASE FITTING
-
78048-486 NUT, LOCKNUT, LOCK
-
81604-307 AXLE, SERRATEDAXLE, SERRATED
-
92604-665 TUBE, AXLETUBE, AXLE
-
108050-272 WASHERWASHER
-
111623-037 SCREW, CAPSCREW, CAP
-
121623-086 SCREW, CAPSCREW, CAP
-
132604-370 AXLE, STEELAXLE, STEEL
-
141604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
141604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
150623-138 RING, RETAININGRING, RETAINING
-
162604-139 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
172604-143 WHEEL, IDLER (INC. 18, 19)WHEEL, IDLER (INC. 18, 19)
-
180107-598 BEARINGBEARING
-
190123-798 RING, RETAININGRING, RETAINING
-
202604-379 SLEEVE, SPRINGSLEEVE, SPRING
-
210704-934 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
210704-935 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
220623-044 WASHERWASHER
-
238051-277 WASHER, LOCKWASHER, LOCK
-
248002-226 SCREW, CAPSCREW, CAP
-
251623-119 SCREW, CAPSCREW, CAP
-
260704-361 LINK REAR SHOCKLINK REAR SHOCK
-
272604-531 AXLE, LINKAXLE, LINK
-
281604-139 SLEEVE, SHOCKSLEEVE, SHOCK
-
298041-486 NUT, LOCK, THINNUT, LOCK, THIN
-
308020-234 SCREW, CAPSCREW, CAP
-
311704-141 SHOCK ABSORBER ARM (REAR)SHOCK ABSORBER ARM (REAR)
