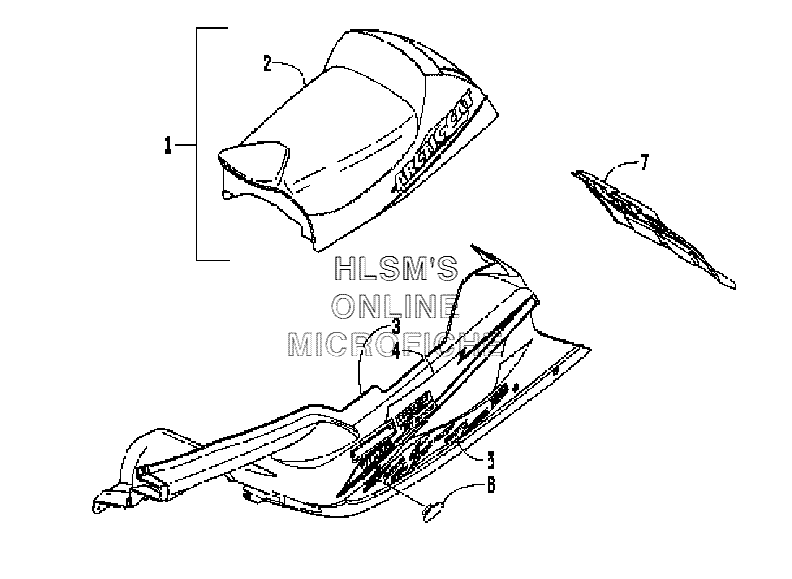

BELLY PAN- SEAT- AND SNOWFLAP для Arctic Cat Firecat 700 EFI (Team Arctic Red) - 2004 года выпуска`
-
№АртикулНазвание
-
17997-594 COMPLETE SEAT ASSEMBLY (INC. 2)COMPLETE SEAT ASSEMBLY (INC. 2)
-
22706-472 COVER, SEATCOVER, SEAT
-
32606-778 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
32606-779 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
45611-680 DECAL, BELLY PAN (UPPER/RIGHT)DECAL, BELLY PAN (UPPER/RIGHT)
-
45611-681 DECAL, BELLY PAN (UPPER/LEFT)DECAL, BELLY PAN (UPPER/LEFT)
-
55611-682 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
55611-683 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
62606-775 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
73606-332 SNOWFLAP W/DECALSSNOWFLAP W/DECALS
