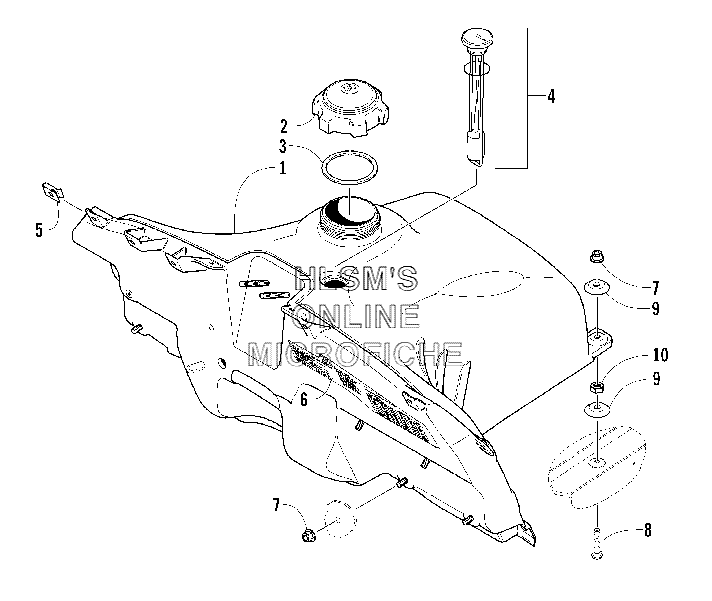

GAS TANK ASSEMBLY для Arctic Cat Firecat 700 EFI Sno Pro 1.375'' (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10770-628 TANK, GAS (INC. 2, 4)TANK, GAS (INC. 2, 4)
-
21670-447 CAP, GAS TANK (INC. 3)CAP, GAS TANK (INC. 3)
-
31670-511 SEAL, TANK CAPSEAL, TANK CAP
-
41670-523 GAUGE, FUEL, ASSEMBLY W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSEMBLY W/GASKET (PRESS, FIT)
-
50623-427 U, NUTU, NUT
-
65611-778 DECAL, CLUTCHING CHARTDECAL, CLUTCHING CHART
-
78048-366 NUT, FLANGENUT, FLANGE
-
88011-041 BOLT, CARRIAGEBOLT, CARRIAGE
-
90123-765 WASHER, CUPWASHER, CUP
-
108041-366 NUT, LOCKNUT, LOCK
