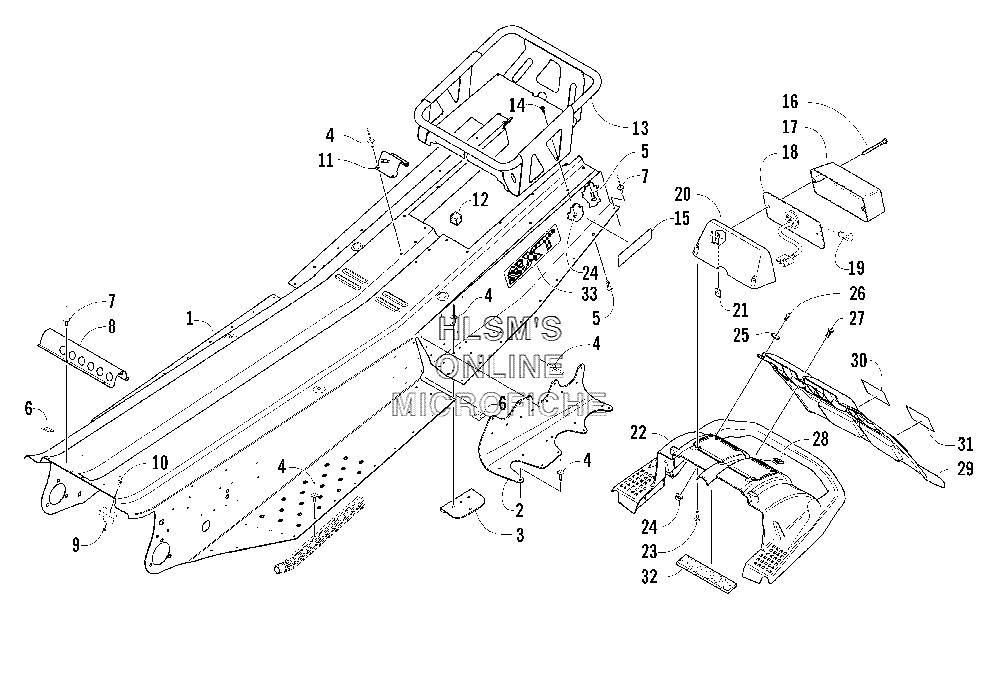

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat Firecat 700 EFI (EXT Black International) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-577 TUNNEL ASSEMBLY (INC. 2, 4)
    TUNNEL ASSEMBLY (INC. 2, 4)
  • 2
    3606-058 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
    BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
  • 2
    3606-059 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
    BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
  • 3
    2706-264 PLATE, BACKING (RIGHT)
    PLATE, BACKING (RIGHT)
  • 3
    2706-263 PLATE, BACKING (LEFT)
    PLATE, BACKING (LEFT)
  • 4
    0623-072 RIVET
    RIVET
  • 4
    0123-418 RIVET
    RIVET
  • 4
    0623-806 RIVET
    RIVET
  • 4
    8060-506 RIVET
    RIVET
  • 5
    1623-022 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 6
    2606-007 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 7
    8060-484 RIVET
    RIVET
  • 8
    2606-938 PROTECTOR, WIRING HARNESS
    PROTECTOR, WIRING HARNESS
  • 9
    8040-246 NUT, LOCK
    NUT, LOCK
  • 10
    8017-399 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    2706-241 PLATE, MOUNTING, SEAT
    PLATE, MOUNTING, SEAT
  • 12
    0617-455 FOAM HEAT EXCHANGER (REAR)
    FOAM HEAT EXCHANGER (REAR)
  • 13
    2706-545 RACK
    RACK
  • 14
    8020-037 SCREW, CAP
    SCREW, CAP
  • 15
    0411-647 DECAL, REFLECTOR (RED)
    DECAL, REFLECTOR (RED)
  • 16
    0623-204 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    0609-229 LENS, TAILLIGHT
    LENS, TAILLIGHT
  • 18
    0609-230 TAILLIGHT W/SOCKET ASSEMBLY
    TAILLIGHT W/SOCKET ASSEMBLY
  • 19
    0109-460 BULB, TAILLIGHT
    BULB, TAILLIGHT
  • 20
    0609-622 HOUSING, TAILLIGHT
    HOUSING, TAILLIGHT
  • 21
    1623-023 NUT, SPEED
    NUT, SPEED
  • 22
    3606-292 BUMPER (REAR)
    BUMPER (REAR)
  • 23
    1623-109 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 24
    8048-366 NUT, LOCK
    NUT, LOCK
  • 25
    0623-875 WASHER
    WASHER
  • 26
    8017-581 SCREW, MACHINE
    SCREW, MACHINE
  • 27
    8017-577 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    0623-363 NUT, SPEED
    NUT, SPEED
  • 29
    3606-331 SNOWFLAP W/DECALS (INC. 30, 31)
    SNOWFLAP W/DECALS (INC. 30, 31)
  • 30
    5611-852 DECAL, WARNING, TOWING (FRENCH)
    DECAL, WARNING, TOWING (FRENCH)
  • 31
    5611-853 DECAL, WARNING, TOWING (ENGLISH)
    DECAL, WARNING, TOWING (ENGLISH)
  • 32
    0617-456 FOAM HEAT EXCHANGER (REAR)
    FOAM HEAT EXCHANGER (REAR)
  • 33
    5611-385 DECAL, "EXT"
    DECAL, "EXT"
