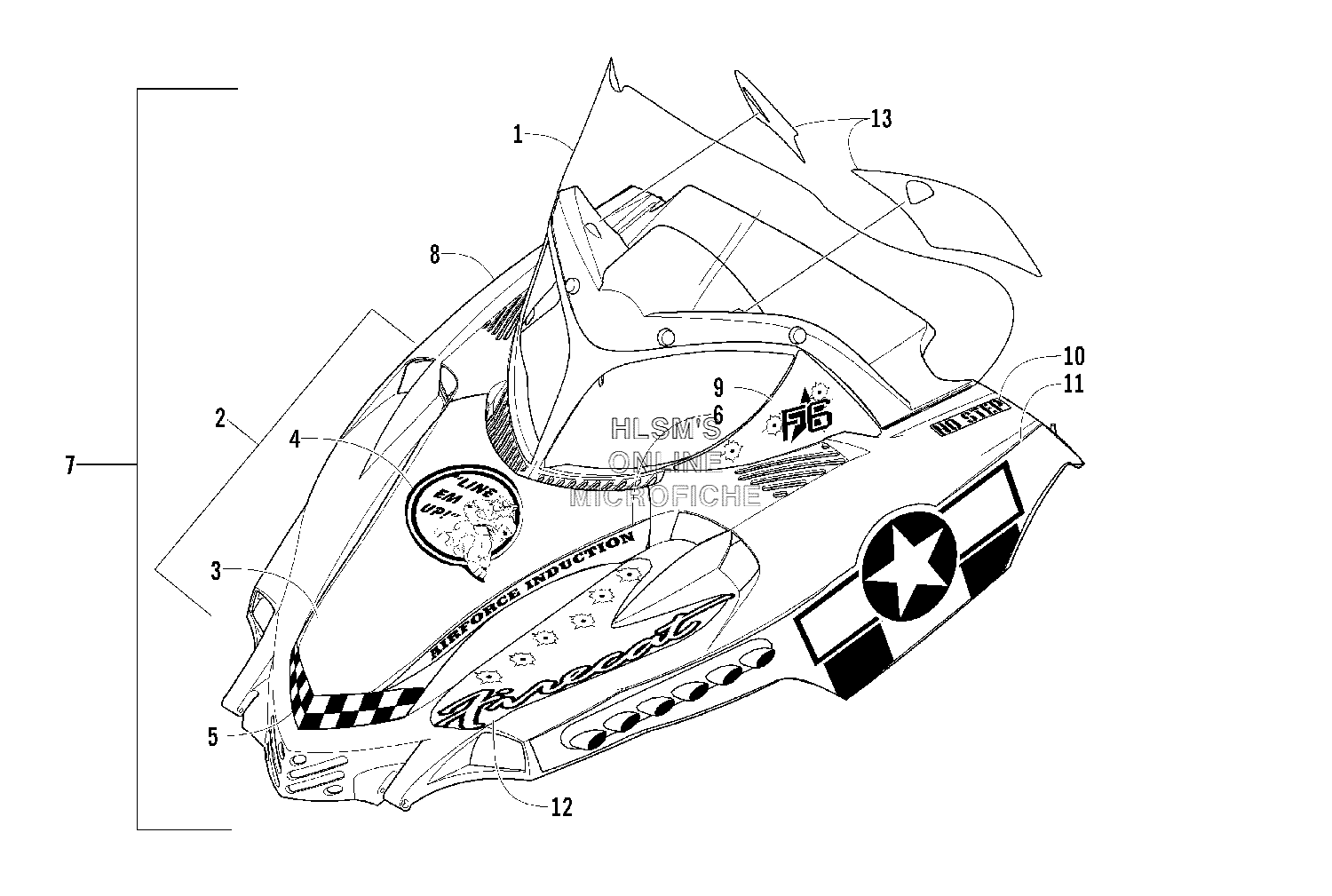

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Firecat 600 (Fighter Silver) - 2004 года выпуска`
-
№АртикулНазвание
-
12606-834 WINDSHIELDWINDSHIELD
-
21718-515 COVER, HOOD W/DECALS (INC. 3, 6)COVER, HOOD W/DECALS (INC. 3, 6)
-
32706-041 COVER, HOOD W/O DECALSCOVER, HOOD W/O DECALS
-
45611-711 DECAL, COVER, CRESTDECAL, COVER, CREST
-
55611-693 DECAL, COVER (FRONT)DECAL, COVER (FRONT)
-
65611-712 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
65611-713 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
71718-501 HOOD W/DECALS (INC. 8, 13)HOOD W/DECALS (INC. 8, 13)
-
81718-522 HOOD W/O DECALSHOOD W/O DECALS
-
95611-702 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
95611-703 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
105611-710 DECAL, HOOD, VENTDECAL, HOOD, VENT
-
115611-694 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
115611-695 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
125611-696 DECAL, HOOD (FRONT) (RIGHT)DECAL, HOOD (FRONT) (RIGHT)
-
125611-697 DECAL, HOOD (FRONT) (LEFT)DECAL, HOOD (FRONT) (LEFT)
-
135611-698 DECAL, HOOD, CONSOLE (RIGHT)DECAL, HOOD, CONSOLE (RIGHT)
-
135611-699 DECAL, HOOD, CONSOLE (LEFT)DECAL, HOOD, CONSOLE (LEFT)
