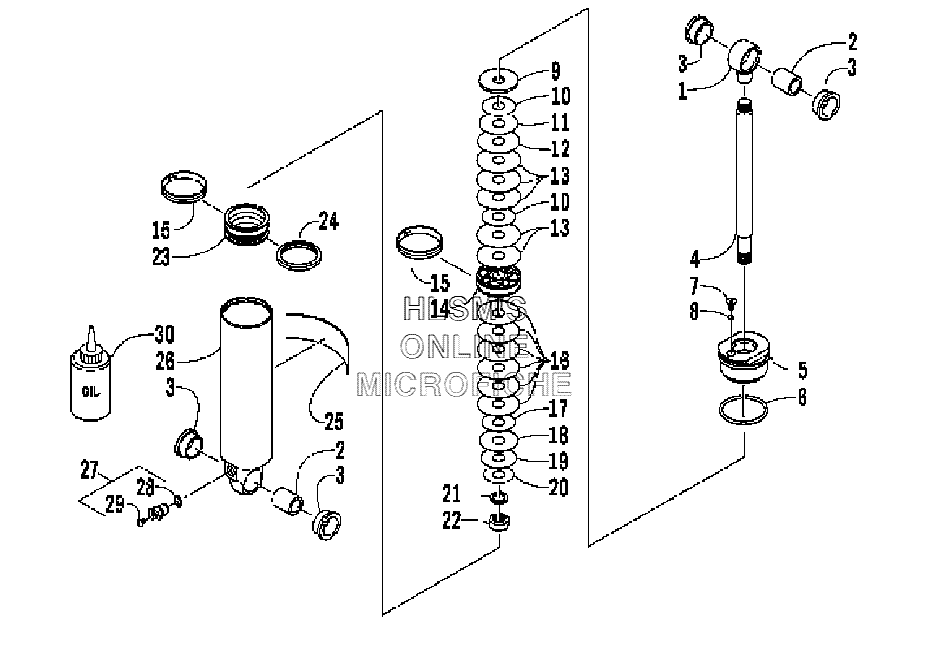

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat Firecat 600 EFI Sno Pro 1'' (Green) - 2004 года выпуска

  • №
    Артикул
    Название
  • -
    1704-141 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    0604-893 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    1604-222 BUSHING, SHOCK
    BUSHING, SHOCK
  • 3
    2604-424 SLEEVE, EYELET
    SLEEVE, EYELET
  • 4
    2604-622 ROD, SHOCK
    ROD, SHOCK
  • 5
    2604-627 CAP, SHOCK (INC. 6)
    CAP, SHOCK (INC. 6)
  • 6
    0603-671 O-RING
    O-RING
  • 7
    2604-530 SCREW (INC. 8)
    SCREW (INC. 8)
  • 8
    1604-425 O-RING
    O-RING
  • 9
    2603-466 WASHER, TOP OUT
    WASHER, TOP OUT
  • 10
    0603-337 VALVE, SHOCK 0.900 X 0.008 IN.
    VALVE, SHOCK 0.900 X 0.008 IN.
  • 11
    0603-350 VALVE, SHOCK 1.300 X 0.010 IN.
    VALVE, SHOCK 1.300 X 0.010 IN.
  • 12
    2604-647 VALVE, SHOCK 1.425 X 0.010 IN.
    VALVE, SHOCK 1.425 X 0.010 IN.
  • 13
    2604-631 VALVE, SHOCK 1.600 X 0.010 IN.
    VALVE, SHOCK 1.600 X 0.010 IN.
  • 14
    2604-645 PISTON, 0.055 IN., ORIFICE
    PISTON, 0.055 IN., ORIFICE
  • 15
    2604-628 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 16
    2604-633 VALVE, SHOCK 1.425 X 0.015 IN.
    VALVE, SHOCK 1.425 X 0.015 IN.
  • 17
    0603-338 VALVE, SHOCK 0.900 X 0.010 IN.
    VALVE, SHOCK 0.900 X 0.010 IN.
  • 18
    0603-891 VALVE, SHOCK 1.300 X 0.012 IN.
    VALVE, SHOCK 1.300 X 0.012 IN.
  • 19
    0603-882 VALVE, SHOCK 1.100 X 0.012 IN.
    VALVE, SHOCK 1.100 X 0.012 IN.
  • 20
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 21
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 22
    0603-301 NUT
    NUT
  • 23
    2604-629 PISTON, FLOATING
    PISTON, FLOATING
  • 24
    1603-236 O-RING
    O-RING
  • 25
    2604-650 DECAL, SHOCK
    DECAL, SHOCK
  • 26
    2604-621 BODY, SHOCK
    BODY, SHOCK
  • 27
    0703-341 VALVE, PRESSURE, ASSEMBLY (INC. 28)
    VALVE, PRESSURE, ASSEMBLY (INC. 28)
  • 28
    1604-318 O-RING
    O-RING
  • 29
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 30
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
