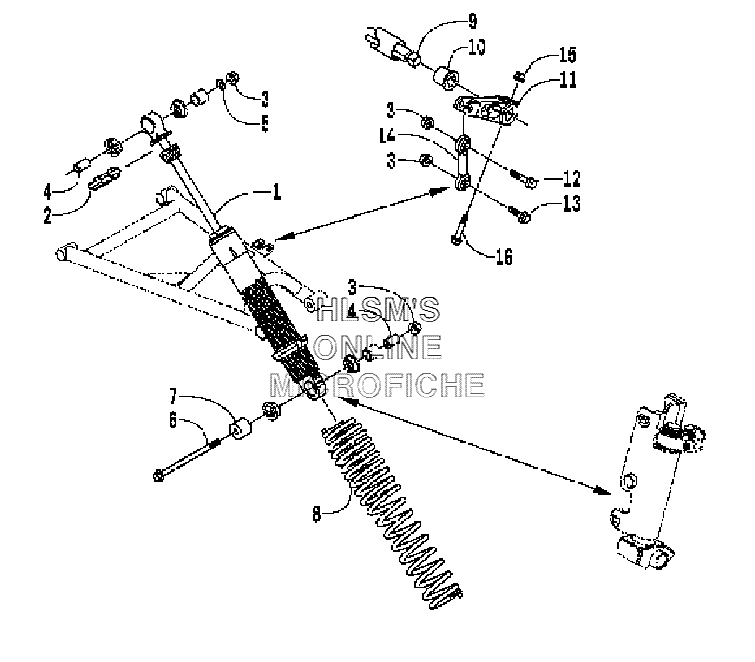

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat Firecat 600 EFI (Red) - 2004 года выпуска`
-
№АртикулНазвание
-
11703-449 SHOCK, SKISHOCK, SKI
-
21603-890 RETAINER, SPRINGRETAINER, SPRING
-
38048-486 NUT, LOCKNUT, LOCK
-
41603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
50623-991 WASHERWASHER
-
68020-232 SCREW, CAPSCREW, CAP
-
70603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
81703-201 SPRING, COMPRESSIONSPRING, COMPRESSION
-
91703-144 SWAY BARSWAY BAR
-
101603-211 BEARINGBEARING
-
110603-558 ARM, SWAY BARARM, SWAY BAR
-
128020-225 SCREW, CAPSCREW, CAP
-
138020-224 SCREW, CAPSCREW, CAP
-
141603-002 LINK, SWAY BARLINK, SWAY BAR
-
158048-426 NUT, LOCKNUT, LOCK
-
168020-137 SCREW, CAPSCREW, CAP
