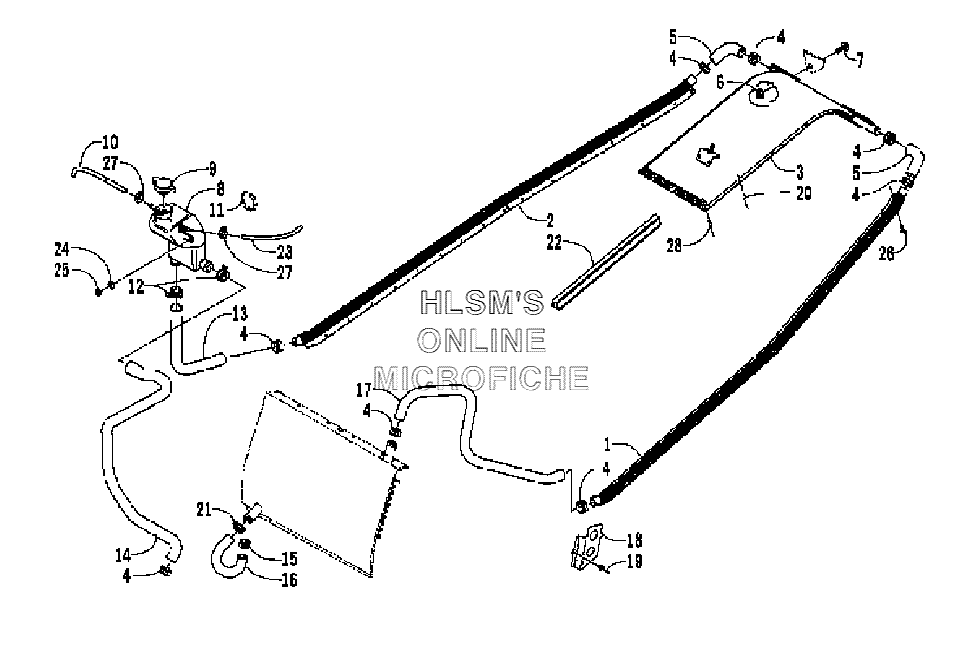

COOLING ASSEMBLY для Arctic Cat Firecat 600 EFI (Early Build) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1706-317 HEAT EXCHANGER TUBE (LEFT)
    HEAT EXCHANGER TUBE (LEFT)
  • 2
    1706-316 HEAT EXCHANGER TUBE (RIGHT)
    HEAT EXCHANGER TUBE (RIGHT)
  • 3
    2706-146 HEAT EXCHANGER (REAR)
    HEAT EXCHANGER (REAR)
  • 4
    1623-049 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    0610-467 HOSE, COOLANT HEAT EXCHANGER (REAR)
    HOSE, COOLANT HEAT EXCHANGER (REAR)
  • 6
    8041-246 NUT, LOCK
    NUT, LOCK
  • 7
    8017-397 SCREW, MACHINE
    SCREW, MACHINE
  • 8
    3606-280 TANK, COOLANT
    TANK, COOLANT
  • 9
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 10
    0610-015 HOSE, VENT (100 FT)
    HOSE, VENT (100 FT)
  • 10
    0610-016 HOSE, VENT (25 FT)
    HOSE, VENT (25 FT)
  • 11
    0123-788 CABLE TIE, 8 IN.
    CABLE TIE, 8 IN.
  • 12
    1623-092 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    0610-468 HOSE, COOLANT TUBE RIGHT/COOLANT TANK
    HOSE, COOLANT TUBE RIGHT/COOLANT TANK
  • 14
    0610-526 HOSE, COOLANT, COOLANT TANK/ENGINE
    HOSE, COOLANT, COOLANT TANK/ENGINE
  • 15
    1623-048 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0610-527 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
    HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
  • 17
    0610-466 HOSE, COOLANT HEAT EXCHANGER FRONT/LEFT TUBE
    HOSE, COOLANT HEAT EXCHANGER FRONT/LEFT TUBE
  • 18
    2606-597 PROTECTOR, HOSE
    PROTECTOR, HOSE
  • 19
    0623-166 RIVET
    RIVET
  • 20
    8060-484 RIVET
    RIVET
  • 21
    0623-941 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    0619-833 PROTECTOR, TUNNEL
    PROTECTOR, TUNNEL
  • 23
    0610-538 HOSE, VENT (25 FT)
    HOSE, VENT (25 FT)
  • 24
    8050-222 WASHER
    WASHER
  • 25
    8041-366 NUT, LOCK
    NUT, LOCK
  • 26
    1623-061 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 27
    0623-063 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    8060-486 RIVET
    RIVET
