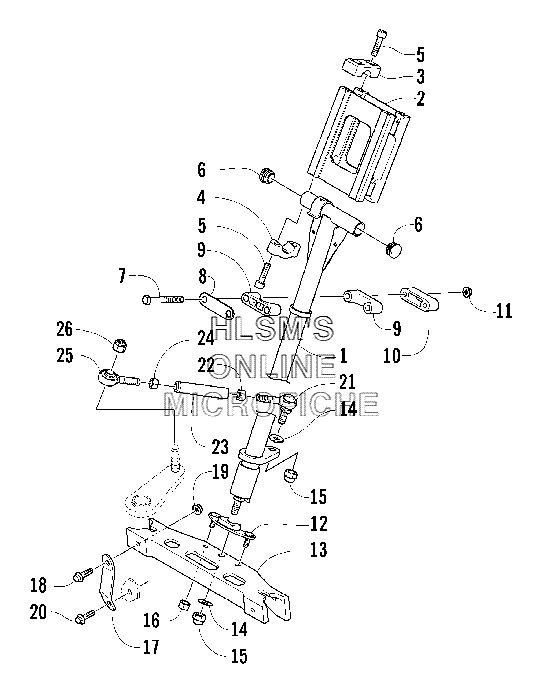

STEERING POST ASSEMBLY для Arctic Cat Arctic Cat 440 Sno Pro (International) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0705-979 POST, STEERING
    POST, STEERING
  • 2
    0605-491 RISER, HANDLEBAR, 5.44 IN.
    RISER, HANDLEBAR, 5.44 IN.
  • 2
    0605-513 RISER, HANDLEBAR, 4.44 IN.
    RISER, HANDLEBAR, 4.44 IN.
  • 2
    0605-512 RISER, HANDLEBAR, 6.44 IN.
    RISER, HANDLEBAR, 6.44 IN.
  • 2
    0605-514 RISER, HANDLEBAR, 2.44 IN.
    RISER, HANDLEBAR, 2.44 IN.
  • 3
    0705-355 CAP, ADJUSTING BLOCK (UPPER)
    CAP, ADJUSTING BLOCK (UPPER)
  • 4
    0605-676 CAP, ADJUSTING BLOCK (LOWER)
    CAP, ADJUSTING BLOCK (LOWER)
  • 5
    0623-872 SCREW, CAP
    SCREW, CAP
  • 6
    1606-079 PLUG, HOLE
    PLUG, HOLE
  • 7
    1623-222 SCREW, CAP
    SCREW, CAP
  • 8
    0605-722 PLATE, RETAINING
    PLATE, RETAINING
  • 9
    0605-576 BLOCK, MOUNTING, STEERING POST
    BLOCK, MOUNTING, STEERING POST
  • 10
    0605-717 BLOCK, ADJUSTMENT, 0.88 IN.
    BLOCK, ADJUSTMENT, 0.88 IN.
  • 10
    0605-723 BLOCK, ADJUSTMENT, 1.88 IN.
    BLOCK, ADJUSTMENT, 1.88 IN.
  • 11
    8047-426 NUT, LOCK
    NUT, LOCK
  • 12
    1705-052 STOP, STEERING POST
    STOP, STEERING POST
  • 13
    0707-835 SUPPORT, STEERING
    SUPPORT, STEERING
  • 14
    0623-044 WASHER
    WASHER
  • 15
    0623-025 NUT, LOCK
    NUT, LOCK
  • 16
    0623-877 NUT W/WASHER
    NUT W/WASHER
  • 17
    0607-776 SUPPORT, STRAP
    SUPPORT, STRAP
  • 18
    8020-049 SCREW, CAP
    SCREW, CAP
  • 19
    8047-366 NUT, LOCK
    NUT, LOCK
  • 20
    1623-022 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 21
    0605-511 BALL JOINT, TIE ROD (LEFT)
    BALL JOINT, TIE ROD (LEFT)
  • 22
    0123-917 NUT, HEX (LEFT)
    NUT, HEX (LEFT)
  • 23
    0605-710 TUBE, TIE ROD
    TUBE, TIE ROD
  • 24
    0623-294 NUT, HEX (RIGHT)
    NUT, HEX (RIGHT)
  • 25
    0605-504 BALL JOINT, TIE ROD (RIGHT)
    BALL JOINT, TIE ROD (RIGHT)
  • 26
    8040-486 NUT, LOCK
    NUT, LOCK
