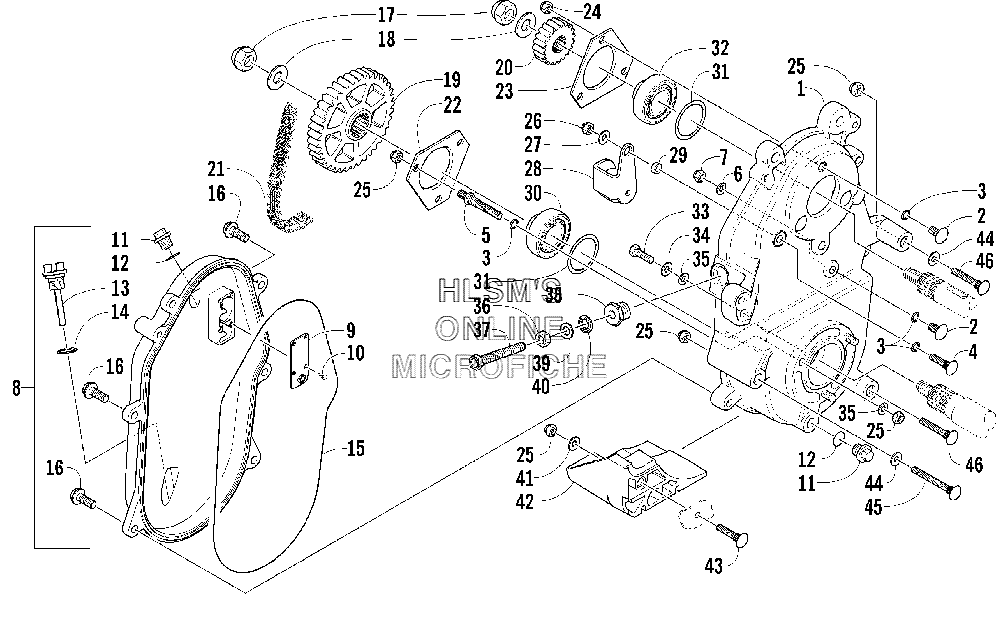

DRIVE/DROPCASE ASSEMBLY для Arctic Cat ZR 800 EFI SNO PRO (BLACK) - 2003 года выпуска`
-
№АртикулНазвание
-
10702-421 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
87996-258 COVER, DROPCASE, ASSEMBLY (INC. 9, 10 AND ONE NO. 11, 12)COVER, DROPCASE, ASSEMBLY (INC. 9, 10 AND ONE NO. 11, 12)
-
91602-152 COVER, OIL VENTCOVER, OIL VENT
-
100623-081 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
110623-293 PLUG, DROPCASEPLUG, DROPCASE
-
121602-213 O-RINGO-RING
-
130602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
140670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
150602-437 SEAL, DROPCASESEAL, DROPCASE
-
168020-134 SCREW, CAPSCREW, CAP
-
170623-465 NUT, LOCKNUT, LOCK
-
180623-231 WASHER, SPRINGWASHER, SPRING
-
191602-087 SPROCKET (39 TEETH)SPROCKET (39 TEETH)
-
190602-453 SPROCKET (40 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (40 TEETH) (OVER 5, 000 FT ALT.)
-
200602-446 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
200602-452 SPROCKET (23 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (23 TEETH) (OVER 5, 000 FT ALT.)
-
211602-042 CHAIN, 72PCHAIN, 72P
-
220602-932 PLATE, FLANGEPLATE, FLANGE
-
230602-198 PLATE, FLANGEPLATE, FLANGE
-
248041-426 NUT, LOCKNUT, LOCK
-
258040-426 NUT, LOCKNUT, LOCK
-
260623-122 NUT, LOCKNUT, LOCK
-
278050-217 WASHERWASHER
-
280702-397 ARM, TIGHTENER, ASSEMBLYARM, TIGHTENER, ASSEMBLY
-
290602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
300702-485 BEARING, 1 IN. (INC. ONE NO. 31)BEARING, 1 IN. (INC. ONE NO. 31)
-
310602-801 O-RINGO-RING
-
320702-486 BEARING, 7/8 IN. (INC. ONE NO. 31)BEARING, 7/8 IN. (INC. ONE NO. 31)
-
338002-135 SCREW, CAPSCREW, CAP
-
348051-242 WASHER, LOCKWASHER, LOCK
-
358050-247 WASHERWASHER
-
360123-150 NUTNUT
-
371602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
380602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
398050-272 WASHERWASHER
-
400623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
418050-242 WASHERWASHER
-
420616-964 GUARD, DROPCASEGUARD, DROPCASE
-
438011-137 BOLT, CARRIAGEBOLT, CARRIAGE
-
448050-252 WASHERWASHER
-
458011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
468011-139 BOLT, CARRIAGEBOLT, CARRIAGE
