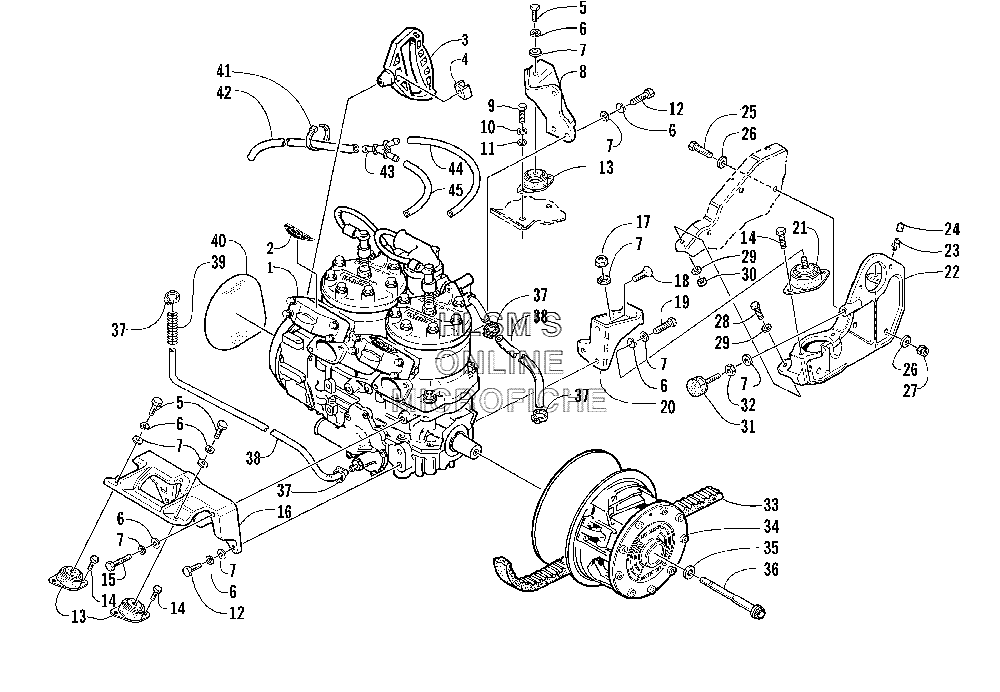

ENGINE AND RELATED PARTS для Arctic Cat ZL 800 EFI ESR (ESR SILVER) - 2003 года выпуска`
-
№АртикулНазвание
-
10662-344 ENGINE, AB78L3 W/O EFI COMPONENTSENGINE, AB78L3 W/O EFI COMPONENTS
-
23611-967 DECAL, "APV"DECAL, "APV"
-
30636-363 HANDLE, RECOILHANDLE, RECOIL
-
40606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
58002-221 SCREW, CAPSCREW, CAP
-
68051-277 WASHER, LOCKWASHER, LOCK
-
78050-272 WASHERWASHER
-
80708-157 BRACKET, MOUNTING, ENGINE (RIGHT/REAR)BRACKET, MOUNTING, ENGINE (RIGHT/REAR)
-
98002-131 SCREW, CAPSCREW, CAP
-
108051-247 WASHER, LOCKWASHER, LOCK
-
118050-247 WASHERWASHER
-
128002-224 SCREW, CAPSCREW, CAP
-
130608-347 MOUNT, ENGINEMOUNT, ENGINE
-
140623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158002-229 SCREW, CAPSCREW, CAP
-
160745-142 BRACKET, MOUNTING, ENGINE (FRONT)BRACKET, MOUNTING, ENGINE (FRONT)
-
178040-486 NUT, LOCKNUT, LOCK
-
180623-881 SCREW, MACHINESCREW, MACHINE
-
198005-674 SCREW, CAPSCREW, CAP
-
200708-158 BRACKET, MOUNTING, ENGINE (LEFT/REAR)BRACKET, MOUNTING, ENGINE (LEFT/REAR)
-
210708-145 MOUNT, ENGINE, ASSEMBLYMOUNT, ENGINE, ASSEMBLY
-
220708-139 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 23, 24)BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 23, 24)
-
230623-899 FITTING, GREASEFITTING, GREASE
-
240623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
258002-225 SCREW, CAPSCREW, CAP
-
260623-044 WASHERWASHER
-
270623-026 NUT, LOCKNUT, LOCK
-
288002-041 SCREW, CAPSCREW, CAP
-
298050-222 WASHERWASHER
-
308040-366 NUT, LOCKNUT, LOCK
-
310608-355 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
320123-191 NUTNUT
-
330627-020 BELT, DRIVEBELT, DRIVE
-
340725-347 CLUTCH, DRIVECLUTCH, DRIVE
-
350623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
360623-913 BOLT, CLUTCHBOLT, CLUTCH
-
370623-373 CLAMP, HOSECLAMP, HOSE
-
380610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
390619-776 CONDUIT, FLEXIBLE (5 FT)CONDUIT, FLEXIBLE (5 FT)
-
401670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
410123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
420610-365 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
430670-875 Y, FITTINGY, FITTING
-
440610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
450610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
